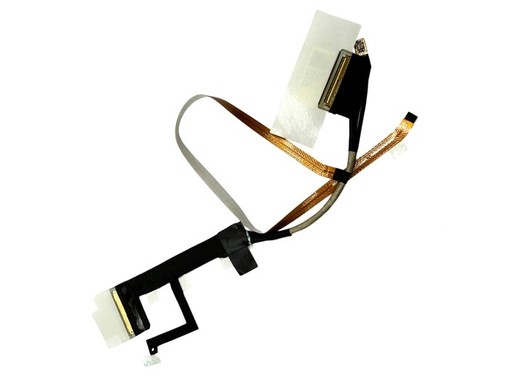

DC02C00NW00 LCD Video Flex Cable for Lenovo Legion 7-15IMH05 - 40-pin eDP Non-Touch
€25.99
Tax included
The DC02C00NW00 video flex cable is a replacement part for Lenovo Legion 7 laptops with a 40-pin eDP screen connector. It is compatible with models 7-15IMH05, 7-15IMHg05, and part number 5C10S30069. It is new, comes with a 3-year warranty, and ships from Spain in 24-48 hours.
DC02C00NW00
DC02C00NW00 LCD Video Flex Cable for Lenovo Legion 7-15IMH05 - 40-pin eDP Non-Touch
New component for screen repair, 40-pin eDP connector for non-touch version.
- 40-pin eDP Connector
- For Non-Touch Screen
- New
Key features
-
Screen Connector
40-pin eDP connector for stable, high-speed video connection.
-
Specific Compatibility
Designed for Lenovo Legion 7-15IMH05 (81YT), 7-15IMHg05 (81YU), and Y9000K (2020).
-
Non-Touch Version
Exclusive for models equipped with a standard (non-touch) screen.
-
Camera Connector
Includes the 10-pin connector for the webcam integrated into the screen bezel.
Product description
The LCD screen video flex cable with part number DC02C00NW00 is an essential replacement component for repairing Lenovo Legion 7 series laptops. This cable is responsible for transmitting the video signal from the motherboard to the screen panel, as well as the webcam signal.
This replacement is the ideal solution for image failures such as flickering, vertical lines, incorrect colors, or a black screen, usually caused by wear or breakage of the original cable due to the opening and closing of the lid.
- Screen Connector: 40-pin eDP.
- Camera Connector: 10 pins.
- Screen Compatibility: Designed for versions with a 15.6-inch NON-TOUCH screen.
- Equivalent Part Number: 5C10S30069.
New component, verified to ensure correct installation and operation in compatible laptop models.
Before making a purchase, it is essential to verify that the part number of your original flex cable matches DC02C00NW00 or 5C10S30069. Also, ensure that your laptop corresponds to a non-touch screen version, as the wiring and connectors are different for touch versions.
Who is this product for?
For technical services and individual users who need to replace a damaged video cable in Lenovo Legion 7 laptops to restore the screen image.
Ideal for
- Replacement of a damaged flex cable in a Lenovo Legion 7-15IMH05.
- Screen repair for flickering or no image on a Legion 7-15IMHg05.
- Solution for webcam not detected due to damaged connector.
- Installation of a new screen panel in a Lenovo Y9000K 2020.
Technical specifications
| Screen Connector | 40 pins eDP |
|---|---|
| Camera Connector | 10 pins |
| Brand | Lenovo |
|---|---|
| Models | Legion 7-15IMH05, 7-15IMHg05, C7-15IMH05, Y9000K 2020 |
| Screen Type | 15.6 inches, Non-Touch |
| Main Part Number | DC02C00NW00 |
|---|---|
| Alternative Part Number | 5C10S30069 |
Compatibility
Compatible part numbers
- DC02C00NW00
- 5C10S30069
Compatible laptop models
- Lenovo Legion 7-15IMH05
- Lenovo Legion 81YT
- Lenovo Legion 7-15IMHg05
- Lenovo Legion 81YU
- Lenovo Legion C7-15IMH05
- Lenovo Legion 82EH
- Lenovo Legion Y9000K 2020
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this cable compatible with my Lenovo Legion 7-15IMH05 with a touch screen?
No, this cable with reference DC02C00NW00 is designed exclusively for Lenovo Legion 7 models that come with a standard NON-touch screen. Touch screen versions use a different cable with different connections. Always verify the part number of your original cable before purchasing.
My original cable has the code 5C10S30069, is this the correct replacement?
Yes, part number 5C10S30069 is fully compatible and equivalent to DC02C00NW00. You can use this cable as a direct replacement for your original part without any compatibility issues, provided your device is one of the listed models and does not have a touch screen.
What laptop problems can this cable solve?
This flex cable solves problems related to the video signal, such as screen flickering, vertical or horizontal lines, distorted colors, a blank or black screen, or the webcam not being detected. These failures usually occur due to cable wear when opening and closing the laptop lid.
What is the product warranty and how can I return it?
The cable has a 3-year warranty for private customers and 1 year for professionals. You have 14 days to return it if you are not satisfied. You can manage the return shipping yourself or request a home collection for 8,90 € in Spain and Portugal, which will be deducted from the refund.
How long does the order take to arrive?
Orders are prepared on the same day if placed before 16:00 (Fridays, 15:00). Shipping to Spain and Portugal takes between 24 and 48 business hours. For other EU destinations, such as France, the timeframe is 48-72 hours, and for Germany, 48-96 hours.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
FLEX-2258
Data sheet
- Compatibility
- Screen Pin
- Camera Pin
- Flex Type
- Non Touch
- Connector Type
- CG. Reference
- DC02C00NW00
- CG. Type of piece
- Flex Cable
- CG. State
- New
- CG. Warranty
- 3 years
New
☆☆☆☆☆
