11.6" Touch Screen Assembly for Lenovo ThinkPad Yoga 11e (20E5, 20E7) - HD 1366x768 IPS

Name: HN116WX1-102 - Lenovo Yoga 11e 11.6" Touch Screen | JVS Informática
SKU: PANT-INT-192
Price: 78.99 EUR
Availability: InStock

€78.99

Tax included

Reference: PANT-INT-192

PRODUCT ON BACKORDER

Delivery time: 10 working days

This product is available on backorder. You can buy it now and you will receive it within the indicated timeframe.

Quantity:

Garantía
Hasta 2 años

15 días para devolver

Pago
seguro

¿profesional de la informática? Consigue tu tarifa especial aquí

Lenovo · HN116WX1-102

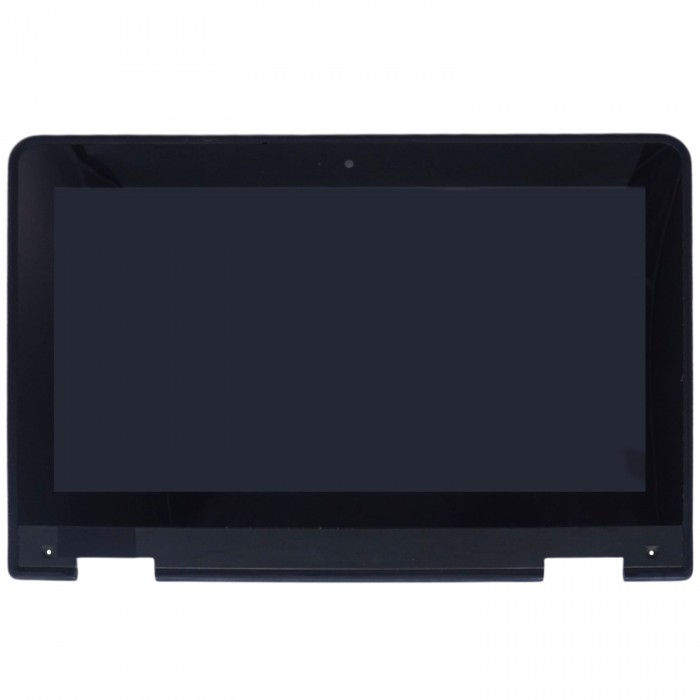

11.6" Touch Screen Assembly for Lenovo ThinkPad Yoga 11e (20E5, 20E7) - HD 1366x768 IPS

New complete assembly with touch digitizer and bezel. IPS panel with glossy finish.

11.6" HD 1366x768 IPS Touch Panel 30 pin eDP Connector Complete Assembly Glossy Finish New

⚡ Key Features

🖥️

Complete Assembly

Includes LCD panel, touch digitizer and bezel for easier and faster installation.

💡

IPS Image Quality

Panel with IPS technology that offers vivid colors and wide viewing angles, with an HD resolution of 1366x768.

🔌

Standard Connection

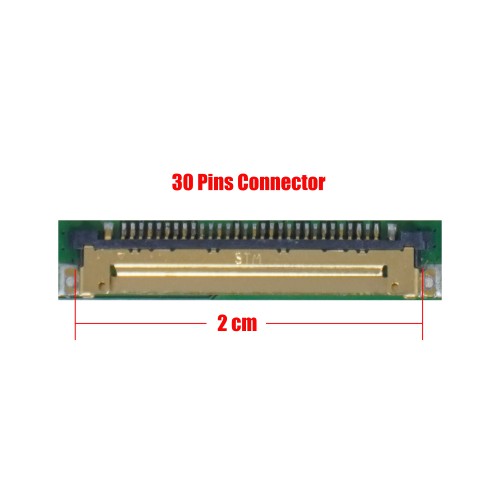

30-pin eDP video connector located on the bottom right, compatible with the original motherboard.

🔧

Precise Compatibility

Specifically designed for Lenovo ThinkPad Yoga 11e series models 20E5, 20E7, 20D9 and 20DA.

📝 Product Description

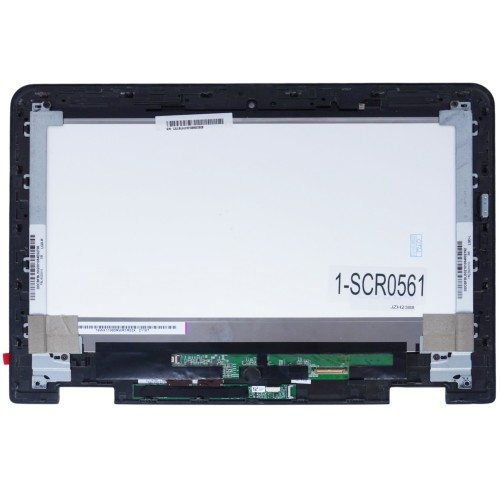

This complete screen assembly with reference HN116WX1-102 is the ideal replacement solution for the Lenovo ThinkPad Yoga 11e laptop. Being a complete unit that includes the LCD panel, touch digitizer and bezel, it greatly simplifies the repair process, saving time and reducing the risk of damaging components. The 11.6-inch screen features IPS technology for superior image quality and an HD resolution of 1366x768. Its 30-pin eDP connector ensures perfect compatibility with the specified models. It is a new product, ready to be installed by technical services or advanced users.

The physical dimensions of the assembly are 30 cm wide by 21.5 cm high, with a board thickness of 1.8 cm. The upper and lower anchors are designed for a perfect fit in the laptop chassis. The product is delivered with factory specifications, including a brightness of 350 cd/m² and a color gamut of 50% NTSC, guaranteeing an optimal visual experience.

⚙️ Technical Specifications

Pantalla

Tamaño	11.6 inches
Resolución	1366x768 HD WXGA
Tecnología Óptica	IPS
Tipo de Retroiluminación	LED
Superficie	Glossy
Brillo	350 cd/m²
Profundidad de Color	50% NTSC
Tasa de Refresco	60Hz

Conexión

Tipo de Conector	eDP1.2
Pines	30
Paso de Pin	0.5mm
Posición del Conector	Bottom Right
Longitud del Conector	2cm

General

Estado	New
Tipo de Monitor	Assembly with Touch Digitizer
Anclajes	Top and Bottom Brackets

Dimensiones Físicas

Ancho	30 cm
Alto	21.5 cm
Ancho de Placa	19 cm
Alto de Placa	1.8 cm

🔢 Compatible Part Numbers

HN116WX1-102 00HT838 00HT839 LP116WH6 SPA1 SD10A09810 00HW237 00HW246 00HW247 00HM248 00HT199 00HT200 00HT201 00HT202 00HT251 00HM247

💻 Compatible Equipment Models

ThinkPad Yoga 11e 20E5 ThinkPad Yoga 11e 20E7 20E5Z123US 20E70001AU 20E7001JAU 20E7A004AU 20E7A005AU 20E7S00V00 20E7S03800 20E7S04500 ThinkPad Yoga 11e 20D9 ThinkPad Yoga 11e 20DA 20D9000PAU 20D9000QAU 20D9000RAU 20D9000SAU 20D9000TAU 20D9000UAU 20D90014AU 20D90019AU 20D9001AAU 20D9001FAU 20D9001GAU 20D9S00500 20DA0010AU 20DA0011AU 20DA0012AU 20DA0013AU 20DA0014AU 20DA0015AU 20DA0016AU 20DA0017AU 20DA0018AU 20DA0019AU 20DA001AAU 20DA001BAU 20DA001DAU 20DA001EAU 20DA001GAU 20DA001HAU 20DA001LAU 20DA0021AU 20DA0022AU 20DA002EAU 20DA002FAU 20DA003NAU 20DA003QAU 20DA003TAU 20DAS02M00 20DAS036AU 20DAS0CY00 20DAS15M00 20DAS18D00 20DAS1BD00 20DAZ06DUS 20DAZ06EUS 20DAS02G00 20DAS07100 20DAS1G800

🛡️
