13.3" FHD Complete Touch Screen for HP Spectre 13-AF series - 941834-001

Name: LP133WF4 SPA5 - HP Spectre 13-AF 13.3" Touch Screen | JVS Informática
SKU: PANT-INT-125
Price: 148.99 EUR
Availability: InStock

€148.99

Tax included

Reference: PANT-INT-125

PRODUCT ON BACKORDER

Delivery time: 10 working days

This product is available on backorder. You can buy it now and you will receive it within the indicated timeframe.

Quantity:

Garantía
Hasta 2 años

15 días para devolver

Pago
seguro

¿profesional de la informática? Consigue tu tarifa especial aquí

Compatible · LP133WF4 SPA5

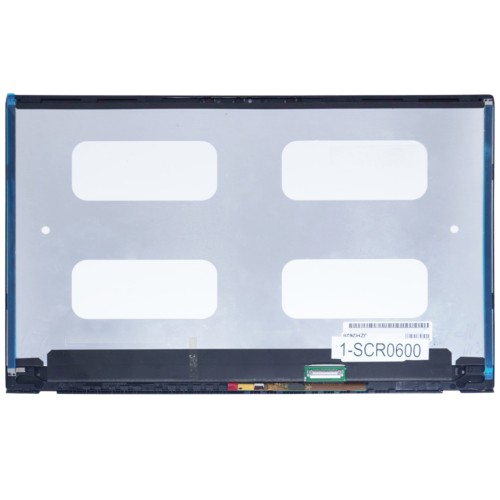

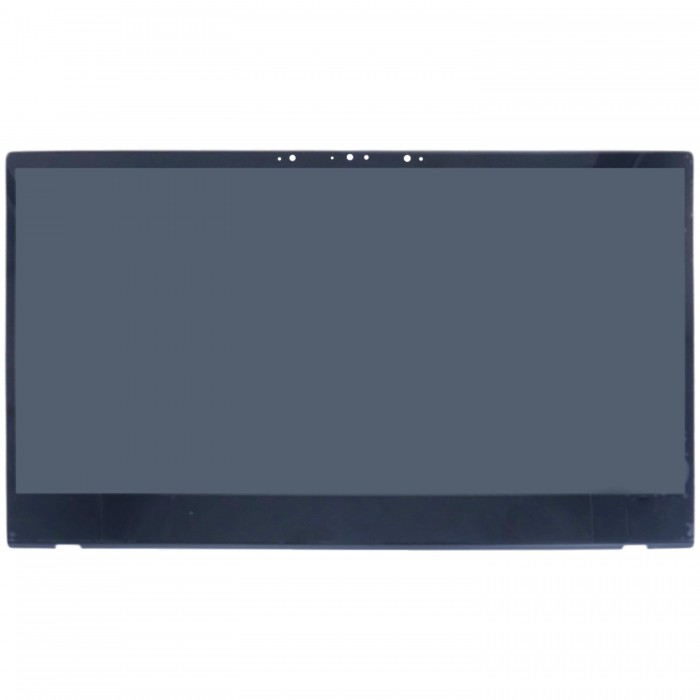

13.3" FHD Complete Touch Screen for HP Spectre 13-AF series - 941834-001

Complete assembly with touch digitizer and frame. New product with 2 year warranty.

13.3 inches 1920x1080 FHD IPS Touch with Digitizer eDP 30 pin connector Complete Assembly New

⚡ Key Features

🖥️

Complete Assembly

Includes LCD panel, touch digitizer and frame for easy and quick installation.

💡

Superior Image Quality

Full HD (1920x1080) IPS panel with 72% NTSC for vivid colors and wide viewing angles.

🔌

Standard Connection

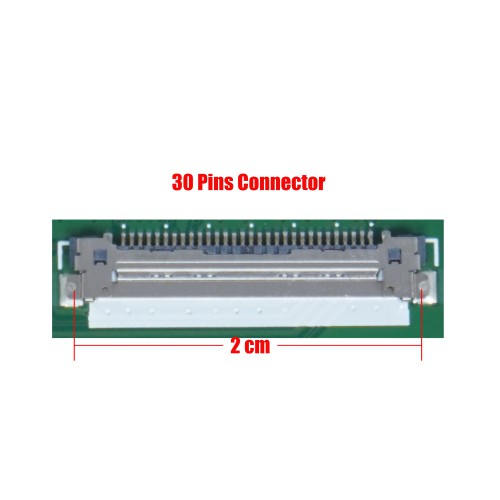

30-pin eDP connector located on the bottom right, ensuring compatibility.

🔧

Assured Compatibility

Designed for HP Spectre 13-AF, 13T-AF models and part numbers 941834-001, 941836-001.

📝 Product Description

This complete screen assembly, with panel reference LP133WF4 SPA5, is the perfect replacement solution for the HP Spectre 13-AF laptop. It is a new component that includes the 13.3 inch LCD panel, the touch digitizer and the frame, facilitating a comprehensive and quick repair. With a Full HD resolution of 1920x1080, IPS technology and a color gamut of 72% NTSC, it guarantees exceptional image quality with vibrant colors and wide viewing angles. The glossy finish enhances the vividness of the image. The connection is made via a 30-pin eDP connector located on the bottom right, ensuring compatibility with the specified models. At the end of this product sheet, you will find a help video from JVS Informática. https://www.youtube.com/watch?v=ugDNn5CLHLw

This product is a complete assembly (Assembly), which means that you will not need to transplant the touch digitizer or the frame from your old screen. It is crucial to verify that the HP part numbers, such as 941834-001 or 941836-001, match your original part to ensure 100% compatibility. Installation must be performed by qualified technical personnel to avoid damage to the components.

⚙️ Technical Specifications

Panel

Tamaño	13.3''
Resolución	1920x1080 FHD
Tecnología	IPS
Tipo de Superficie	Glossy / Brillante
Retroiluminación	LED
Brillo	300 cd/m²
Tasa de Refresco	60Hz
Profundidad de Color	72% NTSC

Conexión

Tipo de Conector	eDP
Posición del Conector	Inferior Derecha
Pines	30
Paso de Pin	0.5mm

Características Físicas

Tipo de Monitor	Assembly Touch Digitizer
Anclajes	Sin Brackets

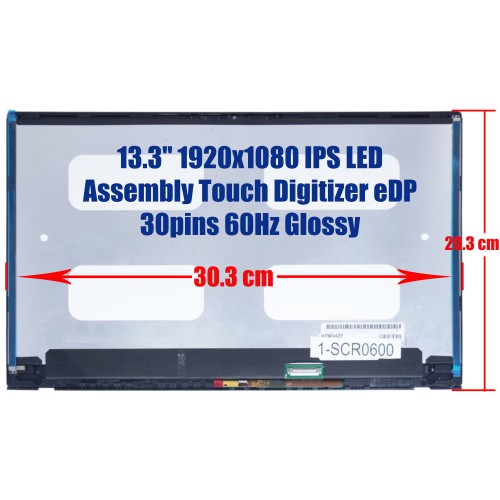

Ancho	30.3cm
Alto	20.3cm

General

Condición	New
Fabricante	Compatible

🔢 Compatible Part Numbers

LP133WF4 SPA5 LP133WF4 (SP)(A5) 941834-001 941836-001

💻 Compatible Equipment Models

HP Spectre 13-AF HP Spectre 13T-AF 13-af001nv 13-AF001NB 13-af000nv 13-af501tu 13T-AF000 1PF71AV 1PF72AV 1PF73AV 2LW03AV 2LW04AV 2LW05AV 1PF71AAR 1PF72AAR 1PF73AAR 2LW03AAR 2LW04AAR 2LW05AAR 13-af000TU 3FV29PA 13-af001TU 2VB03PA 13-af002TU 2UY81PA 13-af005TU 2VQ40PA 13-af006TU 2VQ42PA 13-af007TU 2VQ43PA 13-af011TU 2VQ46PA 13-af012TU 2VQ44PA 13-af020TU 2ZW97PA 13-af021TU 2ZW98PA 13-af022TU 2ZX00PA 13-af023TU 2ZX02PA 13-af026TU 2ZX01PA 13-af027TU 2ZX03PA 13-af028TU 2ZX05PA 13-af029TU 2ZX07PA 13-af032TU 2ZX11PA 13-af033TU 2ZX12PA 13-af034TU 2ZX08PA 13-af035TU 2ZX10PA 13-af078TU 3BE27PA 13-af089TU 3DJ82PA 13-af090TU 3DJ79PA 13-af094TU 3DR85PA 13-af096TU 3DR86PA 13-af099TU 3FV28PA 13-af0xx 3VR33U8R 4TF04U8R 4TF05U8R 4TF08U8R 4TF09U8R 5DP01U8R 5DR49U8R 5DR64U8R 5JW34U8R 5JW35U8R 5KK55U8R 5KK91U8R 5ME31U8R 5ME41U8R 5NB91U8R 5YA16U8R 6BU33U8R 6DG96U8R 6DH21U8R 6FF66U8R 6FF67U8R 6FF68U8R 6FL30U8R 6FL31U8R 6GK14U8R 6GK21U8R 6GK22U8R 6GK23U8R 6GK24U8R 6GK25U8R 6GK26U8R 3VQ91U8R 13-af100TU 5NC36PA 13-af102TU 5NB14PA 13-af501TU 3KL85PA 13-af502TU 3KL82PA 13-af503TU 3KL83PA 13-af504TU 3KJ94PA 13-af506TU 3KJ96PA 13-af508TU 3KK04PA 13-af513TU 3PF60PA 13-af518TU 3PT43PA 13-af520TU 3SD85PA 13-af521TU 3SD86PA 13-af056TU 3AL86PA 13-af058TU 3AL68PA 13-af060TU 3AL85PA 13-af062TU 3AL78PA 13-af064TU 3AL89PA 13-af066TU 3AL88PA 13-af068TU 3AL93PA 13-af070TU 3AL97PA 13-af072TU 3AL94PA 13-af076TU 3BD98PA 13-af081TU 3BE52PA 13-af082TU 3BE35PA 13-af083TU 3BE38PA 13-af086TU 3CH51PA 13-af087TU 3CW18PA 13-af088TU 3CW19PA 13-af091TU 3DJ86PA 13-af092TU 3DR09PA 13-af104TU 5NC17PA 13-af106TU 5NB02PA 13-af108TU 5NA94PA 13-af110TU 5NB00PA 13-af112TU 5NC38PA 13-af114TU 5NA92PA 13-af116TU 5NA95PA 13-af153TU 5UT05PA 13-af510TU 3ML71PA 13-af511TU 3MR91PA 13-af514TU 3PP03PA 13-af515TU 3PP07PA 13-af526TU 5FL39PA 13-AF010CA 2SP67UA 2SP67UAR

🛡️
