11.6" Touch Screen for Acer Chromebook Spin R753T - Complete Assembly HD 40 pins
€77.98
Tax included
Unbranded · 6M.A8ZN7.007

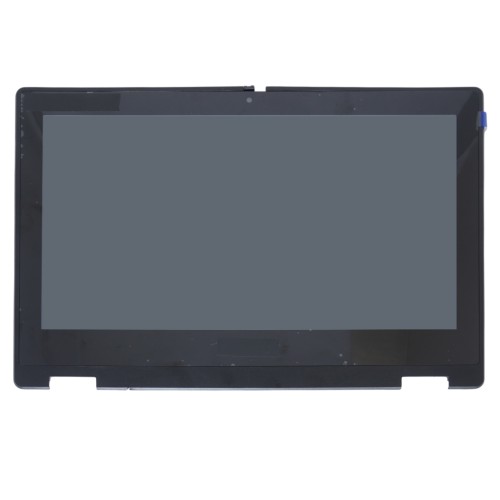

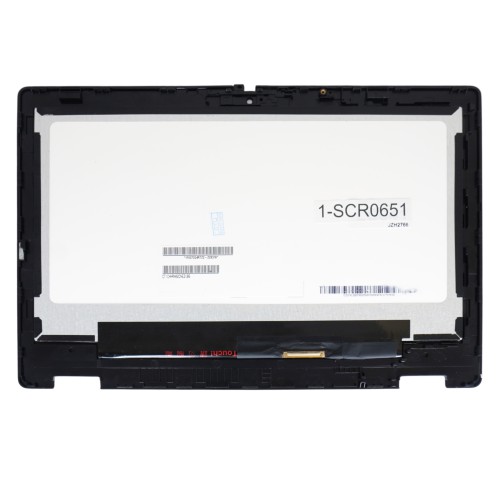

11.6" Touch Screen for Acer Chromebook Spin R753T - Complete Assembly HD 40 pins
Complete assembly with touch digitizer and bezel. 40-pin eDP connector.
11.6 inches
1366x768 HD
40 pin eDP connector
Touch with Bezel
Glossy Finish
New
⚡ Key Features
🖥️
Complete Assembly
Includes LCD panel, touch digitizer and bezel for a direct and easy replacement.
💡
HD Image Quality
1366x768 pixel resolution on an 11.6 inch panel with TN technology.
🔌

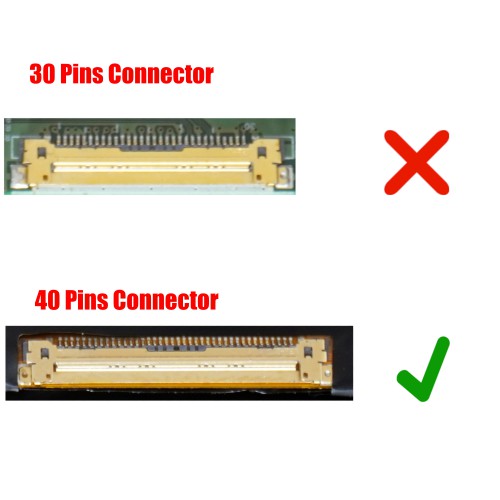

40 Pin eDP Connector
Standard eDP1.2 40-pin connection located on the bottom right.
🔧
Specific Compatibility
Designed for Acer Chromebook Spin R753, R753T and R753TN models.
📝 Product Description
This complete touch screen assembly, compatible with references such as 6M.A8ZN7.007, is the ideal solution for repairing Acer Chromebook Spin R753, R753T and R753TN laptops. The module includes the 11.6 inch LCD panel with HD resolution (1366x768), the touch digitizer and the bezel, which greatly simplifies the replacement process. Its connector is eDP1.2 type with 40 pins, located in the lower right part, guaranteeing a precise connection with the motherboard of the equipment. The glossy finish and TN panel technology offer a clear display for daily use. It is a new component, ready to be installed by technical services or advanced users.
Below, you can see an informative video about the process of changing a laptop screen, useful as a general guide for installing this component.
⚙️ Technical Specifications
Screen
| Size | 11.6'' |
| Resolution | 1366x768 HD WXGA |
| Backlight Type | LED |
| Surface Type | Glossy (Brillante) |
| Tecnología Óptica | TN |
| Brillo | 220 cd/m² |
| Tasa de Refresco | 60Hz |
| Gama de Color | 45% NTSC |
Conexión
| Connector Type | eDP1.2 |
| Pins | 40 |
| Connector Position | Inferior Derecha |
| Paso de Pin | 0.5mm |

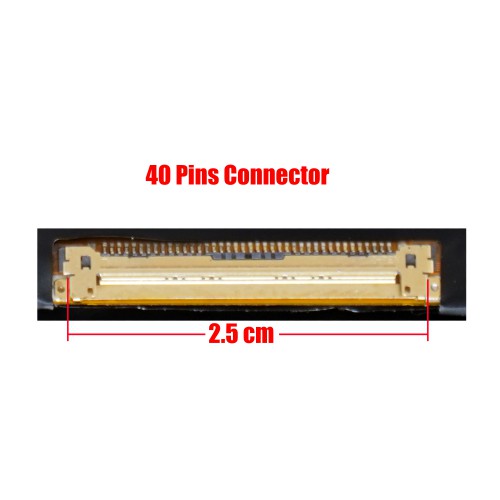

| Connector Length | 2.5cm |
Physical Characteristics
| Monitor Type | Assembly Touch Digitizer |
| Anclajes | Sin Brackets |

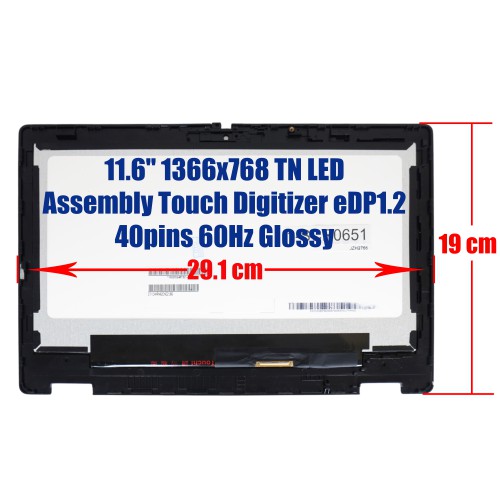

| Width | 29.1cm |
| Alto | 20.5cm |
🔢 Compatible Part Numbers
6M.A8ZN7.001
6MA8ZN7001
6M.A8ZN7.A06
1LDMZZZ019Q
6M.A8ZN7.007
6M.A8ZN7.006
6M.A8ZN7.003
50.A8ZN7.004
6M.A8ZN7.009
N116BCA-EA1 C2
KL.1160H.026
6M.A8ZN7.002
6M.A8ZN7.008
B116XTN02.5
💻 Compatible Equipment Models
Acer Chromebook Spin R753
Acer Chromebook Spin R753T
Acer Chromebook Spin R753TN
🛡️
Premium Warranty & Support
Enjoy 3 Years of direct warranty. Product verified by JVS Informática experts. Secure shipping and post-sales technical support included.
PANT-INT-098
Data sheet
- CP. Resolution
- HD (1366x768)
- CP. Touchscreen?
- SI
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- No
New
☆☆☆☆☆
