12.5" 4K UHD Touch Screen for Toshiba Radius 12 P25w-C - Sharp LQ125M1JW33
€136.98
Tax included
Sharp · LQ125M1JW33

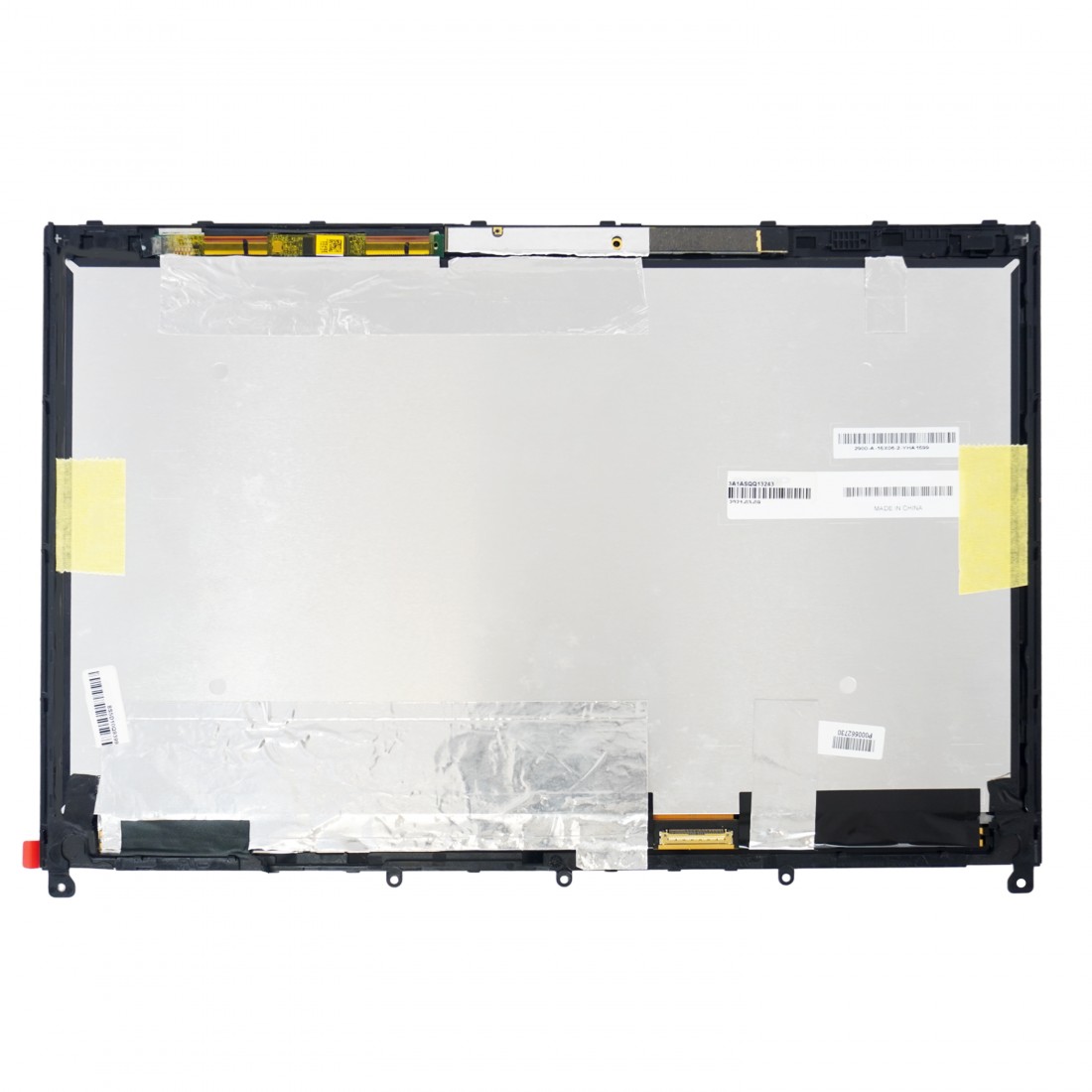

12.5" 4K UHD Touch Screen for Toshiba Radius 12 P25w-C - Sharp LQ125M1JW33
4K UHD (3840x2160) touch screen and digitizer assembly with IPS panel. New.
3840x2160 4K UHD
IPS Panel
40 pin eDP connector
Touch Assembly
New
⚡ Key Features
🖥️
4K UHD Resolution
3840x2160 pixels for exceptional sharpness and detail in a 12.5-inch size.
💡
IPS Technology
Offers accurate colors, high contrast, and wide viewing angles, ideal for professional work.
🔧
Full Touch Assembly
Includes pre-assembled LCD screen and touch digitizer for easier replacement.
🔌
40 Pin eDP Connector
Standard high-speed video interface for guaranteed compatibility and performance.
📝 Product Description
This 12.5-inch touch screen assembly, with Sharp panel reference LQ125M1JW33, is the perfect solution for repairing compatible laptops. It offers an impressive 4K UHD (3840x2160) resolution and IPS technology, guaranteeing superior image quality with vivid colors and wide viewing angles. The product is a complete assembly that includes both the LCD panel and the touch digitizer, facilitating replacement. It has a 40-pin eDP connector located on the bottom right. It is a new component, ready to be installed in equipment such as the Toshiba Radius 12 P25w-C.
Recommended installation guide:
https://www.youtube.com/watch?v=ugDNn5CLHLw

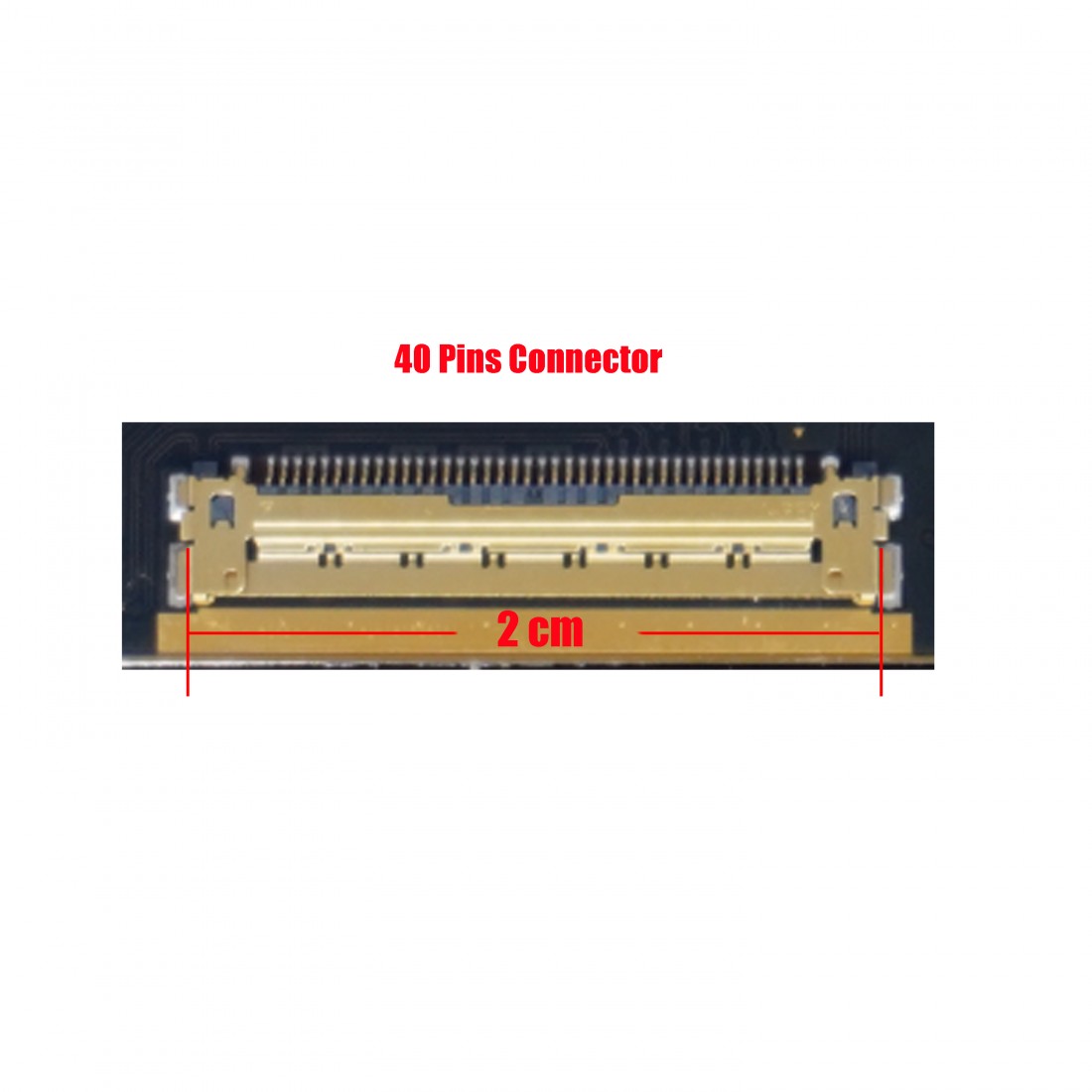

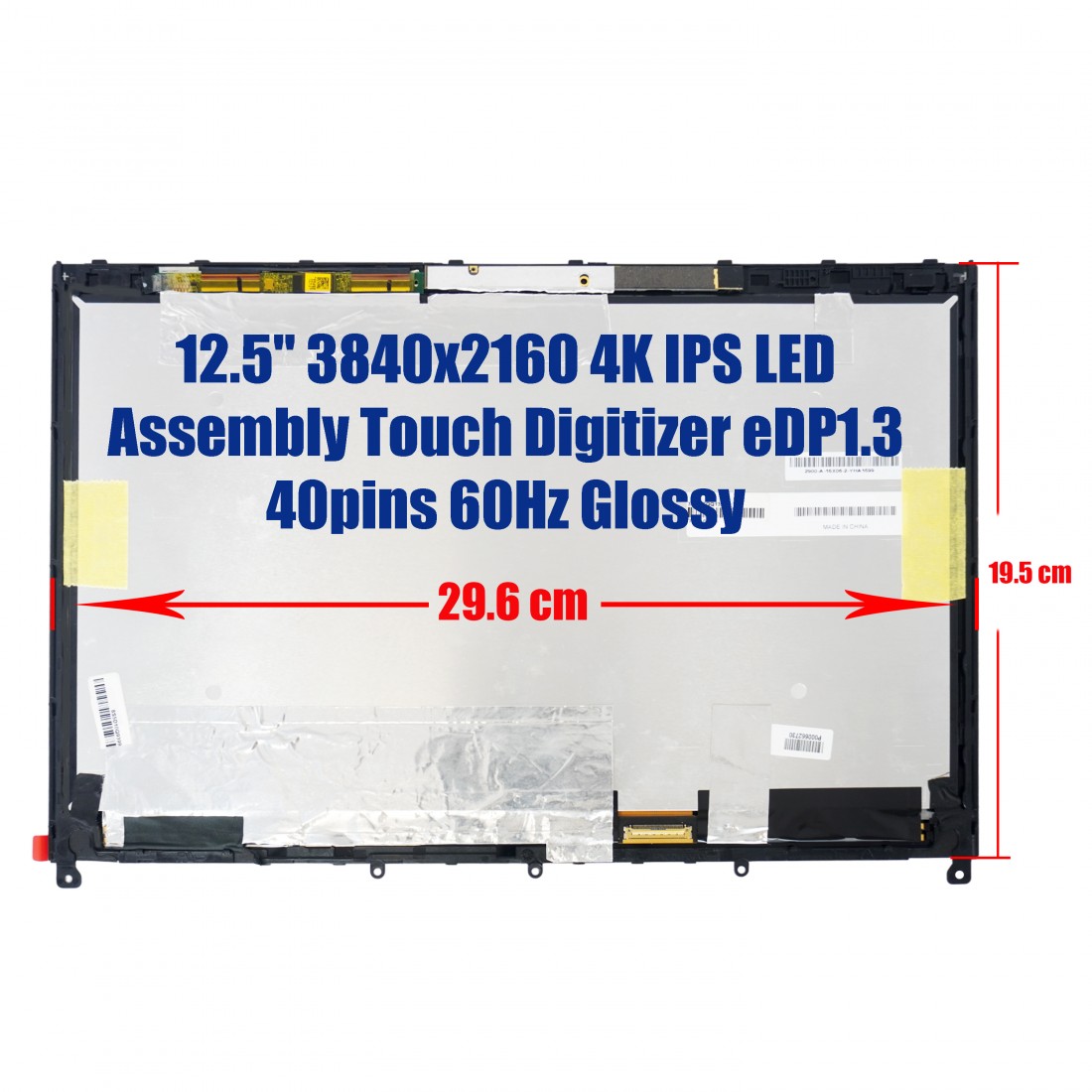

The precise dimensions of this assembly are 29.6 cm wide by 19.5 cm high. The controller board is 22.5 cm wide and 1.2 cm high, with a connector 2 cm long. These measurements ensure a perfect fit in the chassis of compatible laptops. The product is delivered without mounting brackets.
⚙️ Technical Specifications
Screen
| Size | 12.5'' |
| Resolution | 3840x2160 UHD 4K |
| Tecnología Óptica | IPS |
| Backlight Type | LED |
| Superficie | Glossy |
| Tasa de Refresco | 60Hz |
| Profundidad de Color | 72% NTSC |
Conexión
| Connector Type | eDP1.3 |
| Connector Position | Bottom Right |
| Pins | 40 |
| Pitch de Pin | 0.4mm |
Physical Characteristics
| Monitor Type | Assembly Touch Digitizer |
| Montajes | Without Brackets |
| Width | 29.6cm |
| Alto | 19.5cm |
General
| Condition | New |
| SKU | 1-SCR0092 |
🔢 Compatible Part Numbers
LQ125M1JW33
JW33A
P000662740
💻 Compatible Equipment Models
Toshiba Radius 12 P25w-C
Toshiba Radius 12 p20w-c-103
🛡️
Premium Warranty & Support
Enjoy 3 Years of direct warranty. Product verified by JVS Informática experts. Secure shipping and post-sales technical support included.
PANT-INT-082
Data sheet
- CP. Resolution
- UHD (3840x2160)
- CP. Touchscreen?
- SI
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- No
New
☆☆☆☆☆
