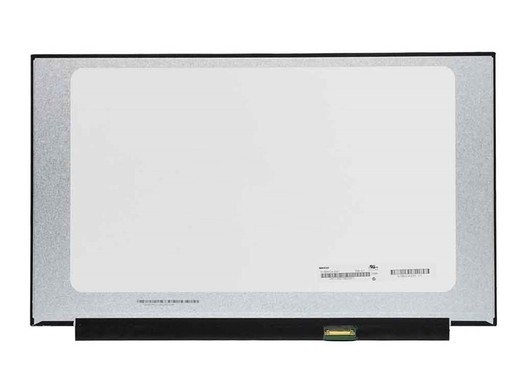

15.6" FHD IPS LM156LF7L01 Screen - Matte, 30-pin eDP Slim Without Brackets
€45.99
Tax included
The LM156LF7L01 screen is a 15.6-inch Full HD (1920x1080) IPS replacement panel with a matte finish. It features a 30-pin eDP connector and is compatible with 10 equivalent part numbers. It is a new product, with a 3-year warranty and shipping from Spain in 24-48 hours.
LM156LF7L01
15.6" FHD IPS LM156LF7L01 Screen - Matte, 30-pin eDP Slim Without Brackets
New replacement panel, Grade A+, with 3 years warranty. Shipping from Spain.
- 1920x1080 FHD IPS
- 30-pin eDP Connector
- New - Grade A+
Key features
-
Superior Image Quality
Full HD 1920x1080 resolution with IPS technology for accurate colors and wide viewing angles.
-
Matte Anti-Glare Finish
Surface that reduces reflections and eye strain, ideal for working in various lighting conditions.
-
30-Pin eDP Connector
Standard 30-pin eDP video interface located on the bottom right, compatible with a wide range of laptops.
-
Slim Design Without Brackets
Thin format without side anchors, designed for precise installation by reusing the original equipment's brackets.
Product description
The LCD panel with reference LM156LF7L01 is a 15.6-inch replacement screen designed for technical services and laptop repairs. It offers a native Full HD (1920x1080 pixels) resolution and IPS technology, ensuring faithful color reproduction and wide viewing angles. Its matte anti-glare finish minimizes reflections, improving visibility in brightly lit environments.
This model is characterized by its slim design without side mounting brackets, which requires reusing the original panel's anchors for installation. The video connector is a 30-pin eDP type, located on the bottom right of the screen.
- Main Reference: LM156LF7L01
- Size: 15.6 inches
- Resolution: 1920x1080 FHD
- Technology: IPS
- Finish: Matte
- Connector: 30-pin eDP
- Condition: New component, Grade A+
This panel or a 100% compatible model from top-tier manufacturers such as AU Optronics (AUO), BOE, Innolux, or LG Display is supplied, always ensuring maximum quality and compatibility.
Installation Guide
To ensure correct installation and avoid damage to the component, we recommend watching the following assembly guide before proceeding with the repair of your equipment.
Before purchasing, it is crucial to verify that the part number of your original screen matches LM156LF7L01 or any of the listed compatible part numbers. Also, check the connector position (bottom right) and the absence of mounting brackets to ensure full compatibility.
Who is this product for?
For technical repair services and advanced users who need to replace a damaged or defective 15.6" laptop screen with a high-quality FHD IPS panel.
Ideal for
- Replacement of a broken screen or one with dead pixels on a 15.6" laptop.
- Upgrade from an HD (1366x768) screen to a Full HD (1920x1080) IPS.
- Replacement of a glossy panel with a matte one to reduce reflections.
- Repair of laptops with image problems such as vertical lines or flickering.
Technical specifications
| Size | 15.6" |
|---|---|
| Resolution | 1920x1080 Full HD |
| Technology | IPS |
| Finish | Matte (Anti-Glare) |
| Format | Slim without Brackets |
| Refresh Rate | 60 Hz |
| Touchscreen | No |
| Connector Type | eDP |
|---|---|
| Number of Pins | 30 pins |
| Position | Bottom Right |
| Width | 2 cm |
Compatibility
Compatible part numbers
- LM156LF7L01
- B156HAN02.1
- B156HAN02.4
- N156HCA-EAB
- N156HCA-EBB
- NV156FHM-N48
- NV156FHM-N4X
- NT156FHM-N61
- LP156WFC(SP)(D1)
- LM156LFCL
- LQ156M1JW01
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
How do I know if the 'without brackets' format is correct for my laptop?
You must check your original screen. If it does not have tabs or anchors with screw holes on the sides (left and right), then you need a 'without brackets' panel like this one. These types of screens are usually fixed to the frame with double-sided adhesive tape.
My original screen is not IPS, can I install this one?
Yes, as long as the size (15.6"), resolution (1920x1080), and connector (30-pin eDP) match, you can install this IPS screen as an upgrade. You will notice a big difference in color quality and viewing angles. No additional modifications are required.
What is the product warranty and how do returns work?
We offer a 3-year warranty for private customers and 1 year for professionals. Additionally, you have 14 days to return the product if you are not satisfied. Return collection is free in Spain and Portugal; for other countries, the customer manages the return shipping.
How long does shipping to Barcelona take?
Shipments to anywhere in peninsular Spain, including Barcelona, take between 24 and 48 business hours. If you place your order before 16:00 (Fridays, 15:00), it is prepared on the same day, speeding up delivery.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
PANT-062
Data sheet
- CP. Resolution
- 1920x1080
- CP. Finish
- Mate
- CP. Connector
- EDP 30 pins
- CP. Position of the connector
- Right inferior
- CP. Connector size
- 2 cm
- CP. Refresco
- 60 Hz
- CP. Supports
- No supports
- CP. Touchscreen?
- No
- CG. Reference
- LM156LF7L01
- CG. Type of piece
- Laptop screen
- CG. China
- Panda or compatible (AUO, BOE, Innolux, LG)
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- SI
New
☆☆☆☆☆
