MB156CS01-8 VER.1.0 Screen - 15.6" FullHD IPS Matte 30 Pins
€47.99
Tax included
The MB156CS01-8 VER.1.0 screen is a 15.6-inch replacement with FullHD resolution (1920x1080), IPS technology, and a 30-pin eDP connector. Its anti-glare matte finish makes it ideal for repairs. It is a new component, with a 3-year warranty and shipping from Spain in 24-48 h.
MB156CS01-8 VER.1.0
MB156CS01-8 VER.1.0 Screen - 15.6" FullHD IPS Matte 30 Pins
Replacement 1920x1080 IPS panel with matte finish. New, with 3 years warranty.
- 1920x1080 FullHD
- IPS Matte Panel
- 30 Pins eDP Connector
- New
Key features
-
FullHD IPS Resolution
1920x1080 pixel panel with IPS technology for accurate colors and wide viewing angles.
-
Anti-Glare Matte Finish
Matte surface that reduces reflections for comfortable use in any light condition.
-
Standard eDP Connection
30-pin, 2 cm wide connector, compatible with a wide range of laptops.
-
Warranty and Reliability
Completely new component, verified by our technicians and with a 3-year direct warranty.
Product description
The MB156CS01-8 VER.1.0 laptop screen is a high-quality replacement designed to offer an exceptional visual experience in repairs. With a size of 15.6 inches and a native FullHD resolution of 1920x1080 pixels, this panel guarantees excellent sharpness and detail.
This component is ideal for technical services and users looking to replace a damaged, broken, or dead-pixel screen. Its main features are:
- IPS Technology: Provides vibrant colors, superior contrast, and viewing angles of up to 178°.
- Matte Finish: The anti-glare surface eliminates annoying reflections, allowing comfortable use in brightly lit environments.
- Standard Connection: Uses a 30-pin, 2 cm wide eDP connector, located on the bottom right of the panel.
- Construction: Panel without mounting brackets (slim), common in modern laptops.
To ensure availability, you may receive an equivalent reference screen from manufacturers such as AU Optronics, Samsung, LG, ChiMei, or Innolux, always meeting or exceeding the original technical specifications of the product.
For a visual guide to the general installation process, you can watch the following video:
Before making the purchase, it is crucial to verify that the part number, size, resolution, and position of the 30-pin connector match those of your original screen. This panel does not include mounting brackets, so it is important to ensure that your equipment uses this type of mounting.
Who is this product for?
For technical repair services and end-users who need to replace a damaged, broken, or dead-pixel laptop screen with a quality IPS FullHD replacement.
Ideal for
- Replacement of broken screen in 15.6" laptops.
- Upgrade from an HD (1366x768) screen to a FullHD (1920x1080) in compatible models.
- Replacement of a panel with dead pixels, spots, or vertical lines.
- Repair of laptops with flickering screens or no image display.

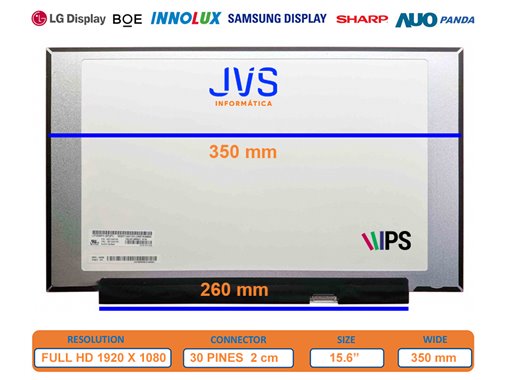

Technical specifications
| Size | 15.6" |
|---|---|
| Resolution | 1920x1080 FullHD |
| Technology | IPS |
| Finish | Matte |
| Touchscreen | No |
| Type | eDP 30 Pins |
|---|---|
| Width | 2 cm |
| Position | Bottom right |
| Brackets | Without brackets |
| Reference | MB156CS01-8 VER.1.0 |
|---|---|
| Condition | New |
| Warranty | 3 years |
Frequently asked questions
My original screen was not IPS, can I install this one?
Yes, in most cases it is possible to upgrade to an IPS screen as long as the size, resolution, and connector type (eDP 30 pins) are exactly the same. You will gain in color quality and viewing angles. However, make sure your laptop supports FullHD resolution if the original was lower.
What is the product warranty and how do returns work?
We offer a 3-year warranty for private customers and 1 year for professionals. You have 14 days to return the product if you are not satisfied. Return collection is free in Spain and Portugal; for other countries, the customer assumes the cost of return shipping.
How long does shipping take?
All orders are prepared and shipped from our warehouse in Spain. The delivery time is 24-48 business hours for Spain and Portugal. For France, the period is 48-72 h, for Germany 48-96 h, and for the rest of the European Union, between 2 and 5 business days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (free pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
PANT-119
312 Items
Data sheet
- CP. Resolution
- 1920x1080
- CP. Finished
- Mate
- CP. Connector
- EDP 30 pins
- CP. Position of the connector
- Right inferior
- CP. Connector size
- 2 cm
- CP. Supports
- No supports
- CP. ¿Pantalla Táctil?
- No
- CG. Reference
- MB156CS01-8 VER.1.0
- CG. Type of piece
- Portable computer screen
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- SI
☆☆☆☆☆
