- Out-of-Stock

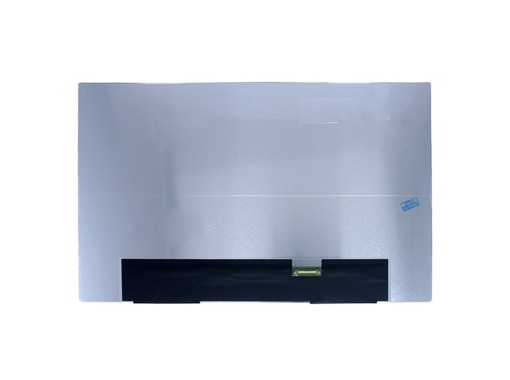

14.0" OLED WUXGA ATNA40CT01-0 Screen for Lenovo IdeaPad Slim 5 - 1920x1200 IPS 30 pins
€235.99
Tax included
The ATNA40CT01-0 screen is a 14.0-inch OLED WUXGA 1920x1200 replacement panel for Lenovo IdeaPad and Yoga laptops. It is compatible with more than 10 part numbers and 20 models. New, with 3 years warranty and shipping from Spain in 24-48 hours.
ATNA40CT01-0
14.0" OLED WUXGA ATNA40CT01-0 Screen for Lenovo IdeaPad Slim 5 - 1920x1200 IPS 30 pins
OLED replacement panel with 1920x1200 resolution, glossy finish and 100% DCI-P3. New product with 3 years warranty.
- 1920x1200 WUXGA
- OLED IPS 100% DCI-P3
- eDP 30 pins
- New
Key features
-
WUXGA Resolution
1920x1200 pixels offering a sharp and detailed image, ideal for work and multimedia.
-
OLED IPS Technology
Enjoy vibrant colors with 100% DCI-P3 coverage, pure blacks, and excellent viewing angles.
-
30-Pin eDP Connector
Standard video interface for modern laptops, located on the bottom right of the panel.
-
Glossy Finish
Reflective surface that enhances color intensity and contrast for an immersive visual experience.
Product description
The laptop screen with reference ATNA40CT01-0 is a high-quality replacement panel with OLED and IPS technology, designed to offer a superior visual experience. With a size of 14.0 inches and a WUXGA resolution of 1920x1200 pixels, this screen provides sharp images and accurate colors thanks to its 100% DCI-P3 color space coverage.
This component features a 30-pin eDP connector located on the bottom right, a common configuration in many modern Lenovo laptops. Its finish is glossy, which intensifies the vibrancy of colors and contrast. It is a Slim type panel, without touch screen and without mounting brackets, designed for perfect integration into compatible chassis. It is the ideal replacement to solve problems of broken screens, dead pixels or image failures in a wide range of Lenovo IdeaPad and Yoga models.
Below, you can watch an informative video on how to identify the correct screen for your laptop:
Panel dimensions: 30.5 cm wide by 19.5 cm high. The controller board (PCBA) has a width of 22 cm and a height of 1.5 cm. The connector has a length of 2 cm. These measurements ensure a precise fit in compatible chassis. Before ordering, it is recommended to verify that the product photo matches your original screen.
Who is this product for?
For technical services and private users who need to replace a damaged OLED screen in Lenovo IdeaPad or Yoga laptops, restoring the original image quality.
Ideal for
- Replacement of a broken or cracked screen on a Lenovo IdeaPad Slim 5 14IRL8.
- Solution to problems of dead pixels, vertical lines or stains on a Lenovo Yoga 6 14IRH8.
- Replacement of a panel with backlight failure or defective image.
- Repair of compatible Lenovo laptops to restore their full functionality.
Technical specifications
| Size | 14.0" |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Technology | OLED IPS |
| Finish | Glossy |
| Refresh Rate | 60 Hz |
| Brightness | 350 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Touch | No |
| Connector Type | eDP |
|---|---|
| Pins | 30 pins |
| Connector Position | Bottom Right |
| Pin Pitch | 0.5mm |
| Width | 30.5 cm |
|---|---|
| Height | 19.5 cm |
| Mounting Type | Without Brackets |
| Panel Type | Slim |
Compatibility
Compatible part numbers
- ATNA40CT01-0
- ATNA40CT01
- 5D11K06153
- SD11K06152
- ATNA40CT03
- SD11Q35726
- 5D11Q35727
- atna40ct05-0
- ATNA40CT02-0
- ATNA40CT01 HW0
Compatible laptop models
- IdeaPad Slim 5 14ABR8
- 82XE006UFR
- 14IMH9
- 83DA003GIN
- 83DA0084AU
- 14IRL8
- 82XD004CSB
- 82XD0076GE
- Yoga 6 14IRH8
- 83E0000TAU
- 83E0000UAU
- 83E0001AAU
- 83E0001GAU
- 83E0CTO1WW
- 14IAP8
- 82WU
- 83E0
- 14IRP8
- 82WV
- 82WV003MAU
- 6-14APU8
- 82X3
- 82X30008BM
- 7 83CVCTO1WW
- 83DA0043IN
- 83DA0083AU
- 14AHP9
- 83DB001JMJ
- 14Q8X9
- 83HL000DAU
- 82WU00095IN
- 82WU008EAD
- 83E00012IN
- 83CV001WAU
- 83CV001XAU
- 83CV006KAU
- 6-14IRH8
- 82XD0040IN
- 83DBCTO1WW
- 82WUCTO1WW
- 14APU8
- 82X3003GGE
- 83CV00A2MX
- 83CV00DSAU
- 83E0001CGE
- 83E0002GAX
- Yoga 7 2-in-1 14AHP9
- 83DK
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this screen compatible with my Lenovo IdeaPad Slim 5 14ABR8 (model 82XE)?
Yes, the IdeaPad Slim 5 14ABR8 model is on the list of compatible devices. To ensure 100% compatibility, we recommend disassembling your original screen and verifying that the part number (e.g., ATNA40CT01-0) and the position of the 30-pin connector match those of this product.
My original screen is matte, can I install this glossy one?
Technically, yes. As long as the size, resolution, connector, and mounting points are identical, the screen will work. However, the visual experience will change from an anti-glare (matte) surface to a reflective (glossy) one, which enhances colors but can cause reflections in brightly lit environments.
What tools do I need to change this screen?
You will need a basic laptop repair kit, which usually includes precision screwdrivers (Phillips #0 or #00 type) and plastic prying tools (spudgers) to separate the bezels without damaging the casing. Since this screen does not have brackets, it is likely fixed with adhesive strips that you will need to replace.
What is the product warranty and how can I return it?
We offer a 3-year warranty for private customers and 1 year for professionals. You have 14 days to return the product if you are not satisfied. You can manage the return shipping yourself or request a home pickup for €8.90 in Spain and Portugal, which will be deducted from the refund.
How long does it take for the order to arrive in France?
All our shipments are made from Spain. For orders to France, the usual delivery time is 2 to 3 business days (48-72 hours) once the package has been prepared and dispatched. Preparation takes 0-1 business days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
PANT-180
Data sheet
- CP. Resolution
- 1920x1200
- CP. Finish
- Brillo
- CP. Connector
- EDP 30 pins
- CP. Refresco
- 60Hz
- CP. Supports
- No supports
- CP. Touchscreen?
- No
- CG. Reference
- ATNA40CT01-0
- CG. Type of piece
- Laptop Screen
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- SI
