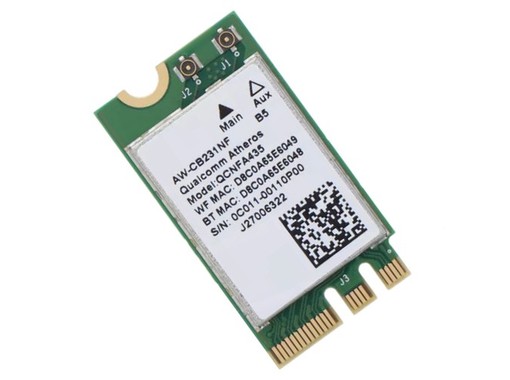

AW-CB231NF WiFi and Bluetooth Card for Asus VivoBook - M.2 2230 802.11ac 433Mbps
€19.99
Tax included
The AW-CB231NF wireless card is a combined Wi-Fi 5 and Bluetooth 4.1 module for Asus laptops with M.2 2230 format. It offers speeds up to 433Mbps on dual-band. Compatible with series like VivoBook, K756UV, and TP200SA. New, with a 3-year warranty and shipping from Spain in 24-48 h.
AzureWave · AW-CB231NF
AW-CB231NF WiFi and Bluetooth Card for Asus VivoBook - M.2 2230 802.11ac 433Mbps
New, with Wi-Fi 5 (802.11ac) and Bluetooth 4.1. 3-year warranty.
- Wi-Fi 5 802.11ac
- Bluetooth 4.1
- M.2 2230 NGFF
- New
Key features
-
Dual Connectivity
Wi-Fi 5 (802.11ac) and Bluetooth 4.1 integrated into a single card for complete connectivity.
-
Compact Form Factor
M.2 2230 (NGFF) interface with 22x30mm dimensions, ideal for laptops and ultrabooks.
-
Dual Band
Operates on 2.4 GHz and 5 GHz bands for greater flexibility and performance up to 433 Mbps.
-
Asus Compatibility
Designed as a direct replacement for a wide range of Asus VivoBook, Flip, and other series laptops.
Product description
The AW-CB231NF wireless network card is an essential component for repairing and upgrading connectivity in Asus laptops. This module combines Wi-Fi 5 (802.11ac) and Bluetooth 4.1 in a compact M.2 2230 (NGFF) form factor, offering an efficient and reliable dual connectivity solution. Based on the Qualcomm QCA9377 chipset, it ensures stable performance on both frequency bands (2.4 GHz and 5 GHz), reaching speeds of up to 433 Mbps.
It is the perfect replacement for devices with a damaged network card or for those experiencing intermittent connection problems. Being a new product, it ensures a prolonged lifespan and optimal operation from the first moment. Its installation is direct in compatible Asus laptop models, restoring factory wireless functionality.
Before placing the order, it is essential to verify that the format (M.2 2230) and the connector type of this card match those of the original part in your laptop. Visually comparing the part to be replaced with the product photos is the safest way to ensure compatibility.
Who is this product for?
For technical services and individual users who need to replace a defective Wi-Fi/Bluetooth card in compatible Asus laptops.
Ideal for
- Replacement of a damaged wireless network card in an Asus VivoBook F512F.
- Repair of Wi-Fi or Bluetooth connectivity issues in an Asus TP200SA.
- Restoration of wireless connectivity in an Asus K756UV.
- Network card upgrade in Asus laptops using the M.2 2230 format.
Technical specifications
| Estándar Wi-Fi | Wi-Fi 5 (802.11ac) |
|---|---|
| Versión Bluetooth | 4.1 |
| Bandas de Frecuencia | 2.4 GHz / 5 GHz (Dual Band) |
| Velocidad Máxima | 433 Mbps |
| Chipset | Qualcomm QCA9377 |
| Interfaz | M.2 2230 (NGFF) |
|---|---|
| Dimensiones | 22mm x 30mm x 2.4mm |
| Marca | Asus |
|---|---|
| PN Equivalentes | QCNFA435, QCA9377, 0C011-00110P00 |
Compatibility
Compatible part numbers
- AW-CB231NF
- QCNFA435
- QCA9377
- 0C011-00110P00
Compatible laptop models
- Asus K756UV
- Asus TP200SA
- Asus E205SA
- Asus VivoBook F512F
- Asus VivoBook E200H
- Asus VivoBook E406M
- Asus VivoBook X515J
- Asus VivoBook Flip TP201S
- Asus VivoBook Flip TP401N
- Asus VivoBook Flip TP200SA
- Asus VivoBook Flip E205SA
- Asus X542UQ
- Asus X542UN
- Asus X542UR
- Asus R542U
- Asus X407U
- Asus F556UA
- Asus VivoBook 15 F512FA-BQ148T
- Asus VivoBook 15 F512FA-BQ145T
- Asus VivoBook 15 F512FA-BQ067T
- Asus VivoBook 15 F512FA-EJ851T
- Asus VivoBook 15 F512FA-EJ1422T
- Asus VivoBook E200HA-FD0006TS
- Asus VivoBook E200HA-FD0004TS
- Asus VivoBook E200HA-FD0005TS
- Asus VivoBook E200HA-FD0042TS
- Asus VivoBook E200HA-FD0043TS
- Asus VivoBook E200HA-FD0041TS
- Asus VivoBook E200HA-US01-BL
- Asus VivoBook E406MA-EB155T
- Asus VivoBook E406MA-EK072TS
- Asus VivoBook E406MA-EK065RA
- Asus VivoBook X515JA-EJ171T
- Asus VivoBook X515JA-BQ647T
- Asus VivoBook X515JP-EJ009T
- Asus VivoBook Flip TP201SA-FV0018T
- Asus VivoBook Flip TP201SA-FV0008T
- Asus VivoBook Flip TP201SA-FV0017T
- Asus VivoBook Flip TP201SA-FV0007T
- Asus VivoBook Flip TP201SA-DB01T
- Asus VivoBook Flip TP201SA-FV0013T
- Asus VivoBook Flip TP201SA-FV0009T
- Asus VivoBook Flip TP201SA-FV0027D
- Asus VivoBook Flip TP201SA-FV0010T
- Asus VivoBook Flip 14 TP401NA-EC030T
- Asus VivoBook Flip 14 TP401NA-BZ014T
- Asus VivoBook Flip 14 TP401NA-EC004T
- Asus VivoBook Flip 14 TP401NA-EC044T
- Asus VivoBook Flip 14 TP401NA-EC007T
- Asus VivoBook Flip 14 TP401NA-EC072T
- Asus VivoBook Flip 14 TP401NA-EC039T
- Asus Transformer Book TP200SA-FV0110TS
- Asus Transformer Book TP200SA-FV0133T
- Asus Transformer Book TP200SA-FV0108TS
- Asus Transformer Book TP200SA-FV0131T
- Asus Transformer Book TP200SA-FV0130T
- Asus Transformer Book TP200SA-FV0132T
- Asus Transformer Book TP200SA-FV0076TS
- Asus Transformer Book TP200SA-FV0132TS
- Asus Transformer Book TP200SA-EDU
- Asus X542UQ-DM071T
- Asus X542UQ-GQ146T
- Asus X542UQ-DM026T
- Asus X542UQ-GQ335T
- Asus X542UQ-GQ145T
- Asus X542UQ-DM336T
- Asus X542UQ-GQ222T
- Asus X542UQ-DM234T
- Asus X542UN-DM129T
- Asus X542UN-DM128T
- Asus X542UN-DM055T
- Asus X542UN-DM243T
- Asus X542UN-DM242T
- Asus X542UN-DM162T
- Asus X542UR-GQ040T
- Asus X542UR-GO216T
- Asus X542UR-DM220T
- Asus X542UR-DM110T
- Asus R542UA-GQ692T
- Asus R542UN-DM168T
- Asus R542UN-DM233T
- Asus R542UN-DM198T
- Asus R542UF-DM074T
- Asus R542UQ-DM393T
- Asus R542UQ-GQ410T
- Asus R542UQ-GQ334T
- Asus X407UA-BV111T
- Asus X407UA-BV013T
- Asus X407UA-BV108R
- Asus X407UB-1B
- Asus X407UB-1C
- Asus X407UB-BV062T
- Asus X407UF-1B
- Asus X407UF-1C
- Asus X407UF-BV038T
- Asus X407UF-EK140T
- Asus F556UA-DM1014T
- Asus K756UV-TY168
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this card compatible with my Asus VivoBook X515J?
Yes, the Asus VivoBook X515J model is on the list of compatible devices. This AW-CB231NF card is a direct replacement to restore Wi-Fi and Bluetooth connectivity to your laptop, as it uses the same M.2 2230 format.
Do I need to install special drivers for it to work?
In most cases, operating systems like Windows 10 or Windows 11 will detect the card and install the necessary drivers automatically. If not, you can download the drivers from the Asus support page for your laptop model or by directly searching for the Qualcomm QCA9377 chipset.
What warranty does it have and how can I return it if it's not compatible?
The product has a 3-year warranty for private customers (1 year for professionals). You have 14 days to return it if you are not satisfied. Return shipping can be managed by yourself or you can request a home pickup for 8.90 € in Spain and Portugal, which will be deducted from the refund.
How long does the order take to arrive?
All orders are shipped from our warehouse in Spain. For Spain and Portugal, the delivery time is 24-48 business hours. For other EU destinations like France, delivery usually takes between 48 and 72 business hours.
My laptop has a card from another brand, can I install this one?
Although the M.2 connector is standard, some laptop manufacturers limit compatible hardware through the BIOS. This card is confirmed for the listed Asus models. If your model is not on the list, compatibility is not guaranteed, even if the physical format is identical.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
BRD-348
Data sheet
- Compatibility
- Condition
- Manufacturer
- AzureWave
- CG. Reference
- AW-CB231NF
- CG. Type of piece
- WiFi Card
- CG. China
- AzureWave
- CG. State
- New
- CG. Warranty
- 3 years
