15.6" Full Touch Screen for HP Pavilion x360 15-BK 15T-BK - FHD 1920x1080 IPS 30 pins
€117.99
Tax included
Unbranded · 862643-001
15.6" Full Touch Screen for HP Pavilion x360 15-BK 15T-BK - FHD 1920x1080 IPS 30 pins
Complete assembly with touch digitizer and frame. Reference 862643-001.
1920x1080 FHD
IPS Panel
Complete Touch Assembly
30 pin eDP Connector
Glossy Finish
New
⚡ Key Features
🖥️
Complete Screen
Includes LCD panel, touch digitizer and frame (bezel) for a direct and simple replacement.
💡
Superior Image Quality
Full HD resolution (1920x1080) with IPS technology for vivid colors and wide viewing angles.
🔌
Standard Connection

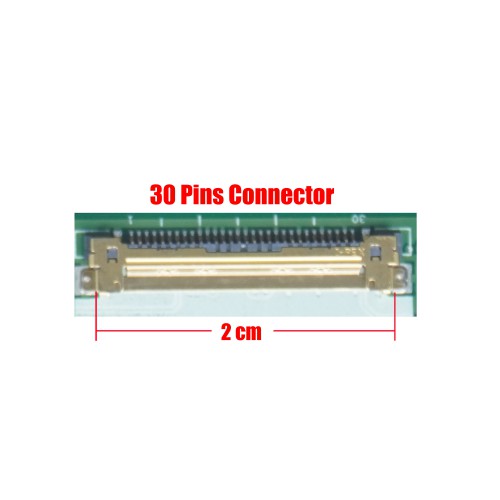

30-pin eDP connector located on the bottom right, compatible with the eDP1.2 standard.
🔧
Precise Compatibility
Specifically designed for HP Pavilion x360 15-BK and 15T-BK models.
📝 Product Description
This complete touch screen assembly is the perfect replacement solution for HP Pavilion x360 Convertible laptops. Specifically compatible with HP reference 862643-001, this component includes a 15.6-inch NV156FHM-N47 V8.1 LCD panel with Full HD resolution (1920x1080) and IPS technology, guaranteeing excellent image quality. The product is new and includes the touch digitizer and frame (bezel), facilitating easier and faster installation. The connector is a 30-pin eDP type, located at the bottom right. Its glossy finish provides vibrant colors, ideal for restoring the original functionality and appearance of the equipment.
To ensure correct installation and handling of the components, we recommend watching the following video guide from our company: https://www.youtube.com/watch?v=ugDNn5CLHLw. It is essential to verify that the product photo and connector specifications match your original replacement before placing the order.
⚙️ Technical Specifications
Panel
| Screen Size | 15.6'' |
| Resolution | 1920x1080 FHD |
| Tecnología Óptica | IPS |
| Backlight Type | LED |
| Surface Type | Glossy |
| Brillo | 250 cd/m² |
| Tasa de Refresco | 60Hz |
| Profundidad de Color | 45% NTSC |
Conexión
| Connector Type | eDP1.2 |
| Pins | 30 |
| Connector Position | Bottom Right |
| Paso de Pin | 0.5mm |
| Connector Length | 2cm |
Físicas

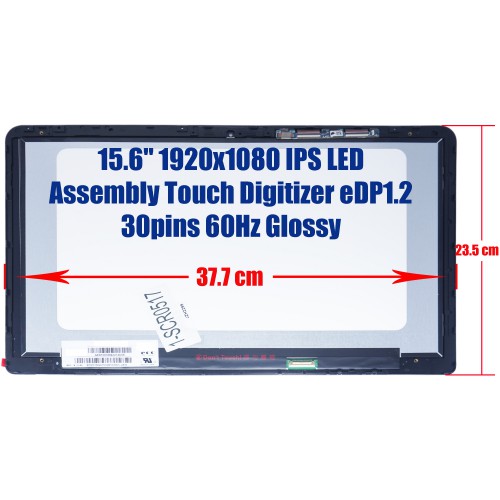

| Width | 37.7cm |
| Alto | 23.5cm |
| Board Width | 28cm |
| Alto de la Placa | 1cm |
| Anclajes | Without Brackets |
Generales
| Condition | New |
| Manufacturer | Unbranded |
| Monitor Type | Assembly with Touch Digitizer |
🔢 Compatible Part Numbers
862643-001
NV156FHM-N47 V8.1
💻 Compatible Equipment Models
15-BK
15T-BK
15T-BK000
X3W62AAR
15-BK010NR
W2M08UA
W2M08UAR
15-BK027CL
X7Q88UA
X7Q88UAR
15-BK117CL
X7U09UA
X7U09UAR
15-BK127CL
X7U10UA
X7U10UAR
15-BK137CL
X7U11UA
X7U11UAR
15-BK151NR
X7Q90UA
X7Q90UAR
15-BK153NR
X7U13UA
X7U13UAR
X3W61AV
X3W62AV
X3W63AV
X3W64AV
15T-BK100
X3W65AV
X3W66AV
X3W61AAR
X3W63AAR
X3W65AAR
X3W66AAR
HP Pav x360 15-bk193ms
X7U12UA
X7U12UAR
15-bk093ms
X7Q89UA
X7Q89UAR
15-bk152sa
Z9D34EA
15-bk001TX
Z1D84PA
Z1D84PAR
15-bk002TX
Z1D85PA
Z1D85PAR
🛡️
Premium Warranty & Support
Enjoy 3 Years of direct warranty. Product verified by JVS Informática experts. Secure shipping and post-sales technical support included.
PANT-INT-126
Data sheet
- CP. Resolution
- FHD (1920x1080)
- CP. Touchscreen?
- SI
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- SI
