12.0" Complete Touch Screen for HP Pavilion X2 12-B (841564-001) - FHD IPS with Frame

€155.99
Tax included
Reference: PANT-INT-081
PRODUCT ON BACKORDER
Delivery time: 10 working days

This product is available on backorder. You can buy it now and you will receive it within the indicated timeframe.

EU shipping 48-96h once in our warehouse 14-day returns 3-year warranty
Quantity:

Warranty
3 years
14 days to return
Secure
payment
IT professional? Get your special trade price here
Unbranded · LP120UP1(SP)(A2)

12.0" Complete Touch Screen for HP Pavilion X2 12-B (841564-001) - FHD IPS with Frame

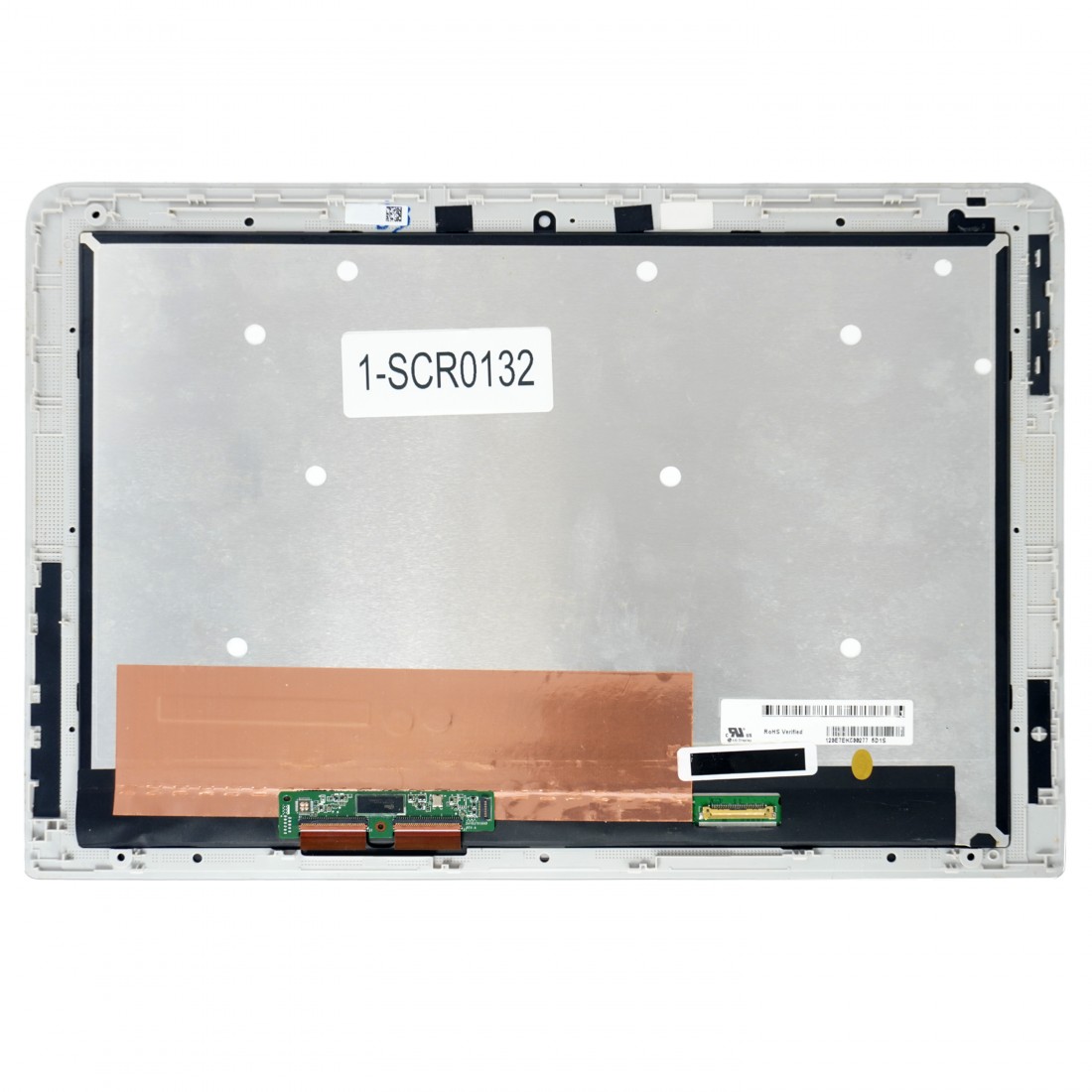

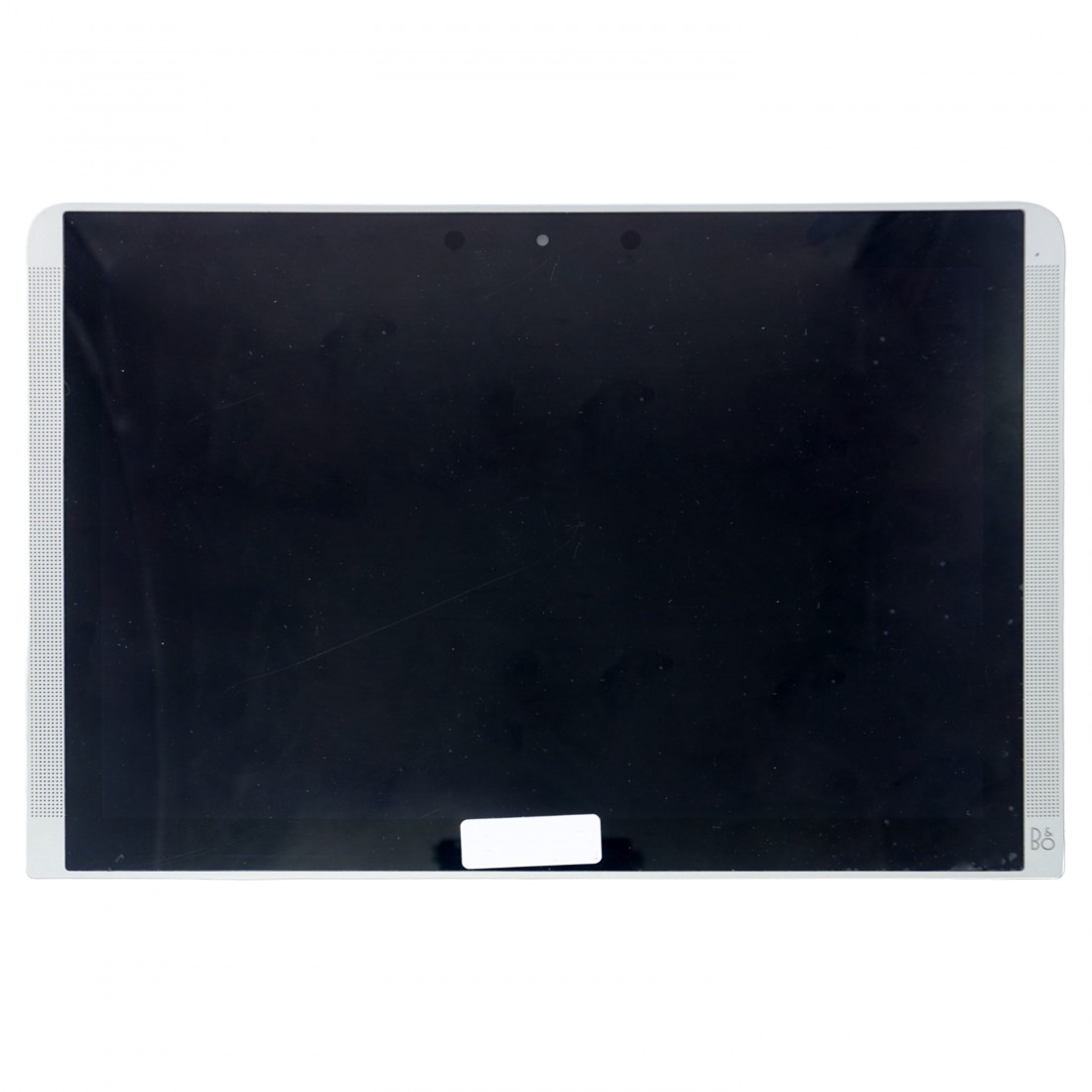

LCD screen assembly + touch digitizer with frame. New product, ready to install.

12.0 inches 1920x1080 FHD IPS Touch with Frame 30 Pin eDP Connector New

⚡ Key Features

🖥️
Complete Screen

Assembly of LCD, touch digitizer and frame for direct and uncomplicated installation.

💡
Superior Image Quality

IPS panel with Full HD resolution (1920x1080) for vivid colors and wide viewing angles.

🔌

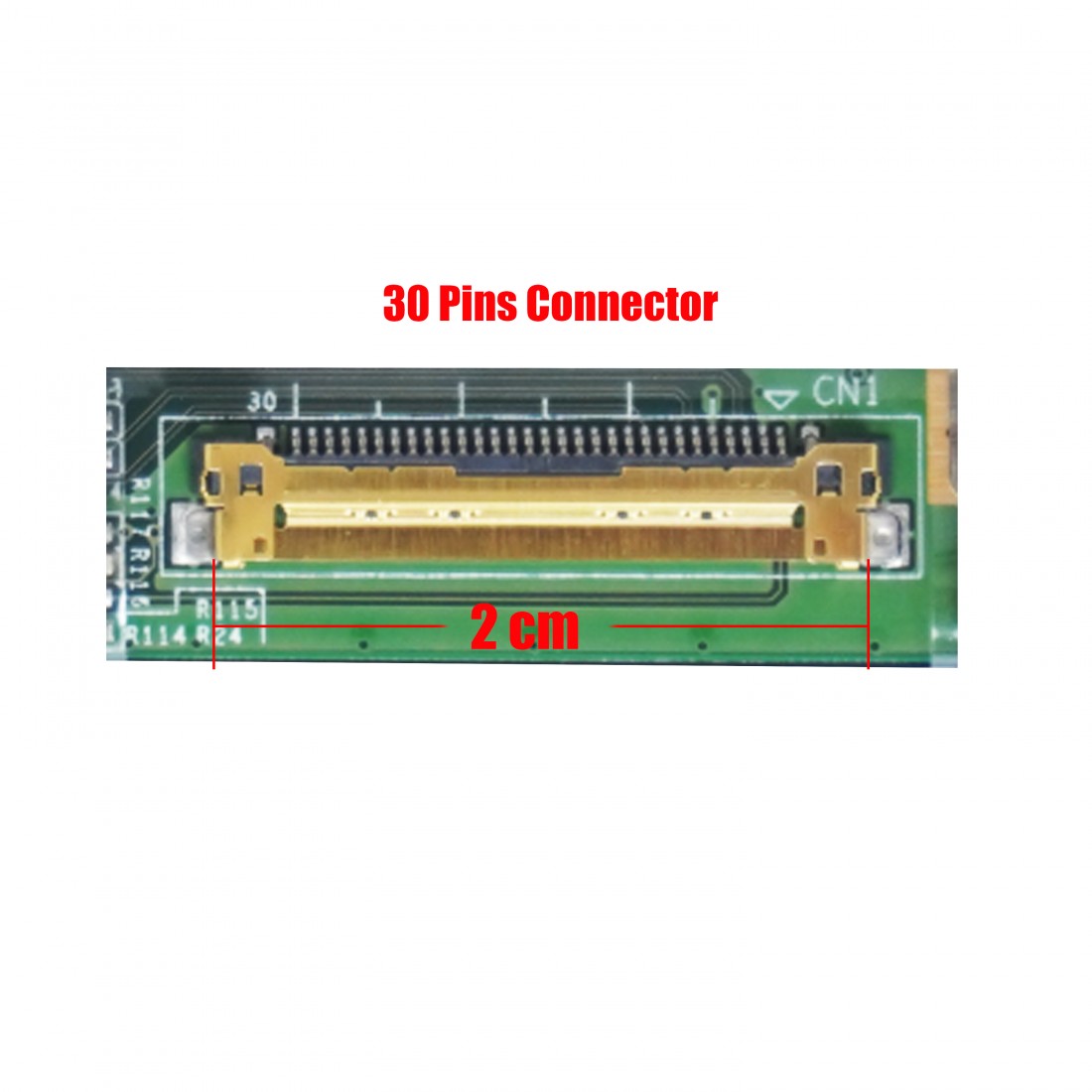

30 Pin eDP Connection

Standard 30-pin eDP connector located on the bottom right for precise compatibility.

🔧
Guaranteed Compatibility

Specifically designed for HP Pavilion X2 12-B, 12T-B and related series models.

📝 Product Description

This complete touch screen assembly, with panel references LP120UP1(SP)(A2) and HP part number 841564-001, is the perfect replacement solution for the HP Pavilion X2 12-B laptop. The module includes the 12.0-inch LCD panel with IPS technology and Full HD resolution, the touch digitizer and the pre-assembled frame, which greatly simplifies the repair process. As it is a complete piece, complex manipulations of individual components are avoided, guaranteeing a perfect fit and a complete restoration of the equipment's tactile and visual functionality. It is a new component, ready to be installed by technical services or advanced users.

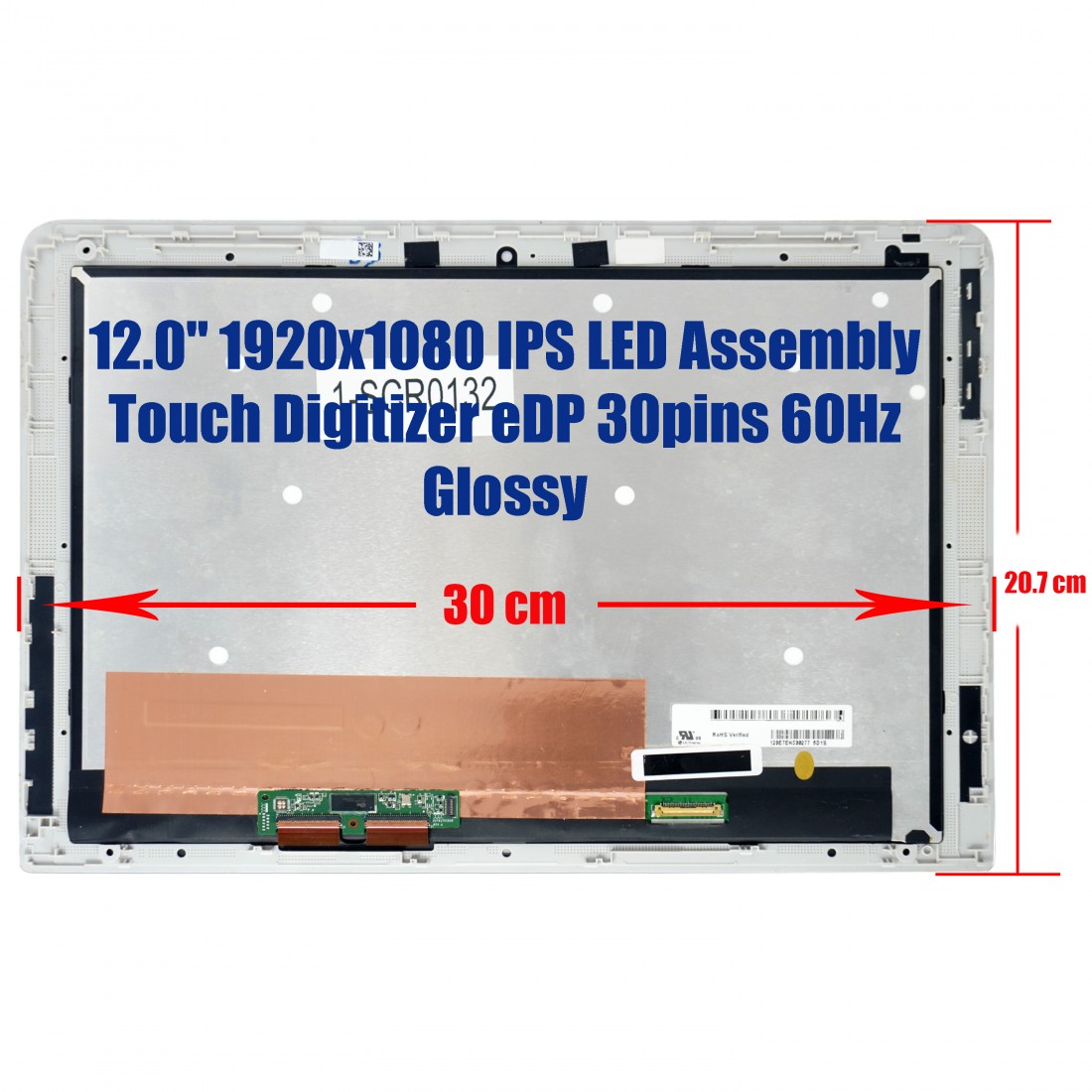

Precise dimensions for a perfect fit: Total width of 30 cm and height of 20.7 cm. The controller board (PCBA) has a width of 23 cm and a height of 1.5 cm. The eDP connector has a length of 2 cm.

⚙️ Technical Specifications

Screen

Size 12.0 inches
Resolution 1920x1080 FHD
Tecnología IPS
Retroiluminación LED
Superficie Brillante (Glossy)
Tasa de Refresco 60Hz
Gama de Color 60% NTSC

Conexión

Type eDP
Pins 30
Posición Bottom Right
Paso de Pin 0.5mm

Physical Characteristics

Product Type Ensamblaje (LCD + Táctil + Marco)
Width 30 cm
Alto 20.7 cm

Compatibility

Part Number Panel LP120UP1(SP)(A2)
Part Number HP 841564-001

🔢 Compatible Part Numbers

LP120UP1(SP)(A2) 841564-001

💻 Compatible Equipment Models

HP Pavilion X2 12-B HP Pavilion X2 12T-B HP Pavilion X2 12-B010NR HP Pavilion X2 12-B020NR
🛡️

Premium Warranty & Support

Enjoy 3 Years of direct warranty. Product verified by JVS Informática experts. Secure shipping and post-sales technical support included.

PANT-INT-081

Data sheet

CP. Resolution
FHD (1920x1080)
CP. Touchscreen?
SI
CG. State
New
CG. Warranty
3 years
CP. IPS
SI
New
