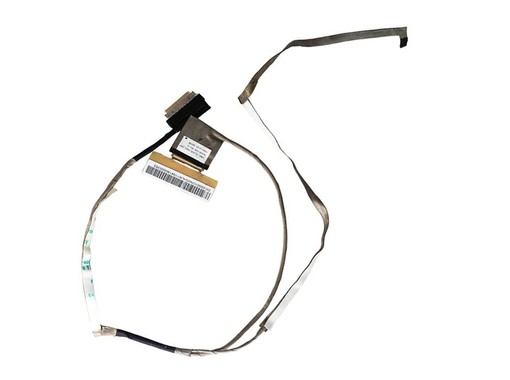

Screen Flex Cable for Lenovo IdeaPad Z400 Z500 P500 Touch - DC02001ON00 40 pins
€16.99
Tax included
The DC02001ON00 screen flex cable is a replacement part for Lenovo IdeaPad Z400, Z500, and P500 series laptops with a 40-pin eDP connector for touchscreens. It is compatible with part numbers 90202167 and DC02001OD00. New product, with a 3-year warranty and shipping from Spain in 24-48 h.
DC02001ON00
Screen Flex Cable for Lenovo IdeaPad Z400 Z500 P500 Touch - DC02001ON00 40 pins
New component for 14.0 inch touchscreens. 40-pin eDP connector.
- 40-pin eDP Connector
- For Touchscreens (Touch)
- New
Key features
-
Specific Connector
40-pin eDP connector designed exclusively for touchscreen (Touch) versions.
-
Wide Compatibility
Designed for Lenovo IdeaPad Z400, P400, P500, Z500, B500, and Z510 series.
-
Equivalent References
Direct replacement for part numbers DC02001OD00, 90202167, and 90202320.
-
New Component
New product, ready to be installed and restore screen functionality.
Product description
This video flex cable with reference DC02001ON00 is the essential component for connecting the motherboard to the LCD screen in Lenovo IdeaPad laptops with touch functionality. It is specifically designed with a 40-pin eDP connector and a 0.5 pitch, ensuring correct video data transmission and touch response.
It is a fundamental replacement part when the screen shows image with interference, flickers, or does not turn on, problems commonly caused by wear of the original cable due to opening and closing the laptop lid. Being a new component, it ensures a reliable and durable connection, restoring full functionality of the equipment.
Before making the purchase, it is crucial to verify that the part number and connector type match those of your original cable to ensure full compatibility and avoid damage to the motherboard.
This component is compatible with a wide range of models within the IdeaPad Z400, P400, P500, Z500, B500, and Z510 series. Correct identification through compatible part numbers (DC02001ON00, 90202167, DC02001OD00, 90202320) is the best guarantee for a successful repair.
Who is this product for?
For technical services and private users who need to replace a damaged video cable in Lenovo IdeaPad laptops with a touchscreen.
Ideal for
- Screen repair for no image or visual artifacts.
- Replacement of cable damaged by opening and closing the lid.
- Replacement in Lenovo IdeaPad Z500 after a connection failure.
- Solution for intermittent touchscreen issues.
Technical specifications
| Pines | 40 pins |
|---|---|
| Tipo de conector | eDP |
| Paso del pin | 0.5 Pitch |
| Marca | Lenovo |
|---|---|
| Series | IdeaPad Z400, P400, P500, Z500, B500, Z510 |
| Función de pantalla | Touch (Touch) |
Compatibility
Compatible part numbers
- DC02001ON00
- 90202167
- DC02001OD00
- 90202320
Compatible laptop models
- IdeaPad Z400 80C1
- IdeaPad P400 ZG38
- IdeaPad P500 30A6
- IdeaPad Z500 5931
- IdeaPad Z500A
- IdeaPad Z505
- IdeaPad B500 0887
- IdeaPad Z510 80A3
- IdeaPad Z400 20201
- IdeaPad Z400 20224
- IdeaPad Z400 5924
- IdeaPad Z400 20220
- IdeaPad Z400 20225
- IdeaPad Z400 6881
- IdeaPad Z400 80C2
- IdeaPad P400 6280
- IdeaPad P400 20211
- IdeaPad P500 30A7
- IdeaPad P500 20210
- IdeaPad P500 6279
- IdeaPad P500 20253
- IdeaPad P500 ABCD
- IdeaPad Z500 20202
- IdeaPad Z500 20226
- IdeaPad Z500 20221
- IdeaPad Z500 6883
- IdeaPad Z500 80A4
- IdeaPad B500 10026
- IdeaPad Z510 20287
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this cable compatible with my Lenovo IdeaPad Z500 Touch?
Yes, this flex cable is specifically for Lenovo IdeaPad Z500 models and other compatible series that come equipped with a touchscreen. The 40-pin connector is designed to handle both the video signal and touch function data. Make sure your original part number matches DC02001ON00 or its equivalents.
My original cable is DC02001OD00, can I use this DC02001ON00 model?
Yes, part numbers DC02001ON00, DC02001OD00, 90202167, and 90202320 are compatible with each other. You can use this cable as a direct replacement for any of those references in the specified Lenovo laptop models.
What tools do I need to change this flex cable?
You will need a set of precision screwdrivers (usually Phillips #0 or #00), a plastic opening tool (spudger) to avoid damaging the casings, and possibly fine tweezers. The process requires disassembling part of the laptop casing and the screen bezel, so patience and care are recommended.
What warranty does the product have and how do returns work?
The cable has a 3-year warranty for private customers and 1 year for professionals. You have 14 days to return it if it doesn't suit you. You can manage the return shipping yourself or request a home collection for 8.90 € in Spain and Portugal, which will be deducted from the refund. It is crucial to verify compatibility before installing it.
How long does it take for the order to arrive at my workshop in Madrid?
All our shipments are made from Spain. For orders to the peninsula (including Madrid), the delivery time is 24 to 48 working hours if you place the order before 16:00. For other destinations, delivery times vary between 2 and 5 working days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
FLEX-2197
Data sheet
- Flex Type
- Touch
- Connector Type
- CG. Reference
- DC02001ON00
- CG. Type of piece
- Screen Flex Cable
- CG. State
- New
- CG. Warranty
- 3 years
- DJ. Pins
- 40
New
☆☆☆☆☆
