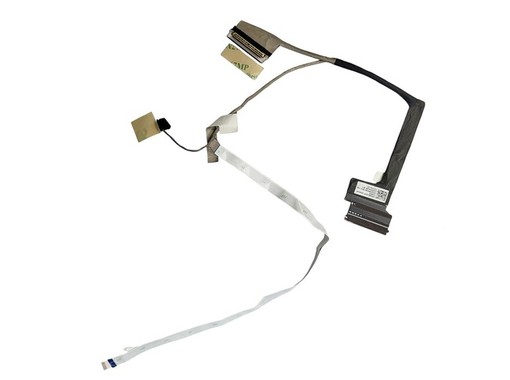

LCD Video Flex Cable for Lenovo Legion 5-15ACH6 5-15ITH6 HY560 DC02C00RV10 40 pins
€17.99
Tax included
The DC02C00RV10 video flex cable is a replacement part for Lenovo Legion 5-15ACH6 and 5-15ITH6 laptops with a 40-pin eDP connector. It is compatible with 120Hz Non-Touch screens and models like 82JW, 82JU, and 82JH. New, with a 3-year warranty and shipping from Spain in 24-48 hours.
Unbranded · DC02C00RV10
LCD Video Flex Cable for Lenovo Legion 5-15ACH6 5-15ITH6 HY560 DC02C00RV10 40 pins
New, for 120Hz Non-Touch screens. 3-year warranty.
- 40-pin eDP Connector
- For 120Hz Non-Touch screens
- New
Key features
-
Screen Connector
Features a 40-pin eDP connector, designed for screens with a 120Hz refresh rate.
-
Specific Compatibility
Designed for Lenovo Legion 5-15ACH6 and 5-15ITH6 models in their non-touch (Non-Touch) screen versions.
-
Camera Connection
Includes the 4-pin connector for the webcam integrated into the screen bezel.
-
New Component
Completely new replacement part, ready to be installed and solve video problems.
Product description
The LCD video flex cable, with reference DC02C00RV10 and alternative part number HY560, is a replacement component specifically designed for the Lenovo Legion 5 laptop series. This cable is crucial for connecting the motherboard to the laptop screen, ensuring video signal transmission.
It is manufactured to be compatible with 15.6-inch screen versions that are non-touch (Non-Touch) and have a 120Hz refresh rate. It features a 40-pin eDP connector for the screen and a 4-pin connector for the camera. It is the ideal solution to replace a damaged cable that causes image problems, flickering, or a black screen.
This component is new and shipped from Spain, guaranteeing a quick and reliable repair for compatible models.
Who is this product for?
For technical services and individual users who need to replace a damaged video cable in Lenovo Legion 5 laptops to solve image problems.
Ideal for
- Repair of a black screen or no signal on a Lenovo Legion 5-15ACH6H.
- Replacement of a flex cable damaged by repeated opening and closing of the lid.
- Solution for screen flickering or artifacts caused by a loose connection.
- Assembly of a Lenovo Legion 5 laptop from parts.
Technical specifications
| Screen Pins | 40 pins |
|---|---|
| Camera Pins | 4 pins |
| Connector Type | eDP |
| Brand | Lenovo |
|---|---|
| Compatible Models | Legion 5-15ACH6, 5-15ITH6 and variants |
| Screen Type | 15.6'' LED, 120Hz, Non-Touch |
| Condition | New |
|---|---|
| Main Reference | DC02C00RV10 |
Compatibility
Compatible part numbers
- HY560
- DC02C00RV10
Compatible laptop models
- Lenovo Legion 5-15ACH6 82JW
- Lenovo Legion 5-15ACH6H 82JU
- Lenovo Legion 5-15ACH6A 82NW
- Lenovo Legion 5-15ITH6 82JK
- Lenovo Legion 5-15ITH6H 82JH
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this cable compatible with my Lenovo Legion 5-15ACH6H model 82JU?
Yes, this flex cable is fully compatible with the Lenovo Legion 5-15ACH6H (Type 82JU) model, provided your laptop is equipped with a 120Hz non-touch (Non-Touch) screen. It is essential to verify this specification, as there are different cables for touch versions or those with other refresh rates.
My original cable has part number HY560, is this DC02C00RV10 a valid replacement?
Yes, part numbers DC02C00RV10 and HY560 are equivalent and refer to the same component. You can install this cable with full confidence as a direct replacement for yours, as the technical specifications and connectors are identical.
What happens if I install this cable on a model with a touch screen?
This cable will not work correctly on a model with a touch screen. Touch screens require a flex cable with additional traces to transmit digitizer data. Installing this cable on a touch version will likely result in the touch function not operating at all.
What is the product warranty and how can I return it?
The cable has a 3-year warranty for private customers and 1 year for professionals. You have 14 days to make a return for withdrawal. You can manage the return shipping yourself or request a home collection for 8.90 € in Spain and Portugal, an amount that will be deducted from the refund.
How long does it take for the order to arrive if I buy it today?
Orders placed before 16:00 (Fridays, 15:00) are prepared on the same business day. Shipping to Spain and Portugal takes between 24 and 48 business hours. For other EU destinations, such as France or Germany, the timeframe may vary between 2 and 5 business days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
FLEX-2177
Data sheet
- Compatibility
- Screen Pin
- Camera Pin
- Flex Type
- Non Touch
- Connector Type
- CG. Reference
- DC02C00RV10
- CG. Type of piece
- Video Flex Cable
- CG. China
- Unbranded
- CG. State
- New
- CG. Warranty
- 3 years
New
☆☆☆☆☆
