DC Jack Type-C Connector for Lenovo Tab M10 TB-X605F and Blackview BV6600 - SKU.31149
€10.99
Tax included
The SKU.31149 Type-C DC Jack charging connector is a replacement part for Lenovo, Blackview, Leagoo, and Oukitel mobile phones and tablets with a 'Needles Down' connector. It is compatible with models such as Lenovo Tab M10 TB-X605F and Blackview BV6600. It is a new component, with a 3-year warranty and shipping from Spain in 24-48 hours.
SKU.31149
DC Jack Type-C Connector for Lenovo Tab M10 TB-X605F and Blackview BV6600 - SKU.31149

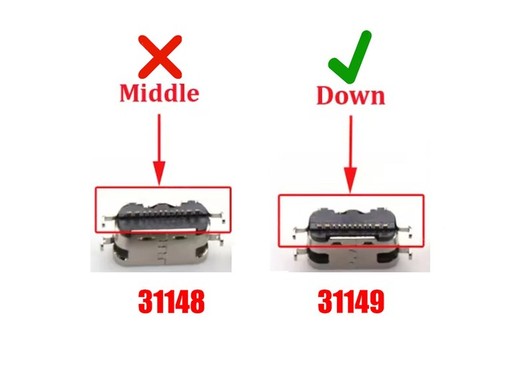

New USB-C charging connector with needles down. Verify the photo before purchasing.
- USB Type-C Connector
- Needles Down Pins
- New
Key features
-
Connector Type
USB Type-C, current standard for charging and data.
-
Pin Orientation
Soldering pins facing down (Needles Down), crucial for board compatibility.
-
Broad Compatibility
Valid for multiple Lenovo, Blackview, Leagoo, and Oukitel models.
-
Component Condition
Completely new product, ready to be soldered onto the motherboard.
Product description
The DC Jack Type-C charging connector, with reference SKU.31149, is a replacement component designed for motherboard repair in a wide range of mobile devices and tablets. Its main characteristic is the orientation of its soldering pins, which are arranged downwards ('Needles Down'), a crucial detail to ensure compatibility with the device's PCB.
This USB-C connector allows restoring charging and data transfer functionality in devices where the original port has suffered damage from use, pulling, or wear. It is an essential component for technical services specialized in micro-soldering repairs.
It is fundamental that the technician visually verifies the correspondence of this connector with the part to be replaced before making the purchase, as multiple variants may exist for the same device model.
Before proceeding with soldering, it is recommended to carefully compare the product photograph with the original connector installed in the device. The position of the anchor and data pins is vital for a correct fit and a successful repair. This component is an economical and precise solution to avoid the complete replacement of the motherboard.
Who is this product for?
For technical services and electronics repair professionals who need to replace a damaged USB-C charging port in compatible tablets and mobile phones.
Ideal for
- Repair of the charging port in Lenovo Tab M10 TB-X605F.
- Replacement of damaged connector in Blackview BV6600.
- Fixing charging problems in Oukitel WP5000.
- Restoration of data connection in Leagoo S10.
Technical specifications
| Connector Type | Type-C |
|---|---|
| Pin Orientation | Needles Down (Downward) |
| Condition | New |
|---|---|
| Manufacturer | Unbranded |
Compatibility
Compatible laptop models
- Leagoo S10
- Oukitel WP5000
- Oukitel K6
- Lenovo S5 K520
- Lenovo Tab M10 TB-X605FC
- Lenovo Tab M10 TB-X705F
- Lenovo Tab M10 TB-X605M
- Blackview BV5900
- Blackview BV6600
- Blackview BV6600Pro
- Blackview BV6900Pro
- Blackview BV9100
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
What does 'Needles Down' mean and why is it important?
'Needles Down' refers to the orientation of the pins that are soldered to the motherboard; in this case, they point downwards. It is a vital technical detail because if you buy a connector with the incorrect orientation ('Needles Up'), it will not fit the soldering points on your device's board, making repair impossible.
Is soldering required to install this connector?
Yes, the installation of this DC Jack requires micro-soldering skills and tools. It is a component that is soldered directly onto the device's motherboard (PCB). It is not a 'plug and play' part, so it is recommended that installation be performed by a qualified technician.
What warranty does it have and how can I return it if it doesn't work for me?
The connector has a 3-year warranty for private customers and 1 year for professionals. You have 14 days to make a return if it is not the correct component, provided it has not been used or soldered. You can manage the return shipping yourself or request a home collection for €8.90 in Spain and Portugal, which will be deducted from the refund.
How long does it take for the order to arrive in Spain?
All our shipments are made from Spain. For orders to the peninsula (Spain and Portugal), the delivery time is 24 to 48 working hours if you place the order before 16:00. For other EU destinations, the period may vary between 2 and 5 working days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
JACK-1260
Data sheet
- CG. Reference
- SKU.31149
- CG. Type of piece
- DC Jack
- CG. State
- New
- CG. Warranty
- 3 years
- Connector
- Type-C
- DJ. Part type
- DC Jack
New
☆☆☆☆☆
