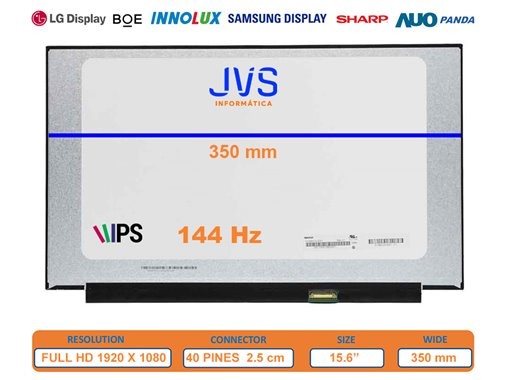

Screen for Lenovo Legion 5 15ARH05 15.6" FHD 144Hz IPS 40-pin
€64.99
Tax included
The replacement screen for the Lenovo Legion 5 15ARH05 laptop is a 15.6" FHD 144Hz IPS panel with a 40-pin connector. It is compatible with the 144Hz versions of the 82B5 model, but not with the 60Hz versions (30 pins). New product, with 3 years warranty and shipping from Spain in 24-48h.
Legion 5 15ARH05 (144Hz)
Screen for Lenovo Legion 5 15ARH05 15.6" FHD 144Hz IPS 40 pins
IPS 1920x1080 replacement panel with 40-pin eDP connector. New, with 3 years warranty.
- 1920x1080 px
- 144 Hz
- 40-pin eDP connector
- Matte IPS Panel
- New
Key features
-
Full HD Resolution
1920x1080 pixels for a sharp and detailed image, ideal for gaming and multimedia content.
-
144 Hz Refresh Rate
Provides superior motion fluidity, essential for high-speed games.
-
IPS Panel
In-Plane Switching technology that offers accurate colors and wide viewing angles.
-
40-Pin eDP Connector
Specific connection for high refresh rate versions of this model. Not compatible with 30 pins.
Product description
This is a 15.6-inch replacement panel designed for the Lenovo Legion 5 15ARH05 (Type 82B5) laptop, specifically for versions factory-equipped with a 144 Hz Full HD screen. It offers a resolution of 1920x1080 pixels, IPS technology for superior color quality, and an anti-glare matte finish.
It uses a 40-pin eDP video connector, characteristic of high refresh rate panels. It is essential to verify that your original screen shares these specifications, as this replacement is not compatible with 60 Hz versions, which usually mount a 30-pin connector.
How to know if it is the correct screen for my Legion 5?
The only way to guarantee 100% compatibility is to remove the screen bezel from your laptop and check the reference on the back label of the original panel. Look for one of the following codes:
- Panel models: NV156FHM-NY4 V8.0, B156HAN09.2, LP156WFG(SP)(P1), B156HAN13.1, NV156FHM-NX1 V8.0.
- Lenovo FRU (Field Replaceable Unit): 5D10W86612, 5D10W86614, 5D10X01147, 5D10X01150, 5D10X01151, 5D11B84959.
If your original screen has any of these codes, this replacement is correct for your equipment.
Who is this product for?
For technical services and users who need to replace the damaged screen of their Lenovo Legion 5 15ARH05 laptop (144Hz version).
Ideal for
- Replacement of a broken screen on a Legion 5 15ARH05.
- Repair of a panel with dead pixels or vertical lines.
- Screen replacement with flickering or no image on 144Hz models.
Technical specifications
| Size | 15.6" |
|---|---|
| Resolution | 1920x1080 px |
| Refresh Rate | 144 Hz |
| Technology | IPS |
| Finish | Matte |
| Touchscreen | No |
| Connector type | eDP |
|---|---|
| Number of pins | 40 pins |
| Connector position | Bottom right (rear view) |
Compatibility
Compatible part numbers
- NV156FHM-NY4 V8.0
- B156HAN09.2
- LP156WFG(SP)(P1)
- B156HAN13.1
- NV156FHM-NX1 V8.0
- 5D10W86612
- 5D10W86614
- 5D10X01147
- 5D10X01150
- 5D10X01151
- 5D11B84959
Compatible laptop models
- Lenovo Legion 5 15ARH05 (Tipos de máquina: 82B5)
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this screen compatible with any Lenovo Legion 5 15ARH05?
No. This screen is exclusively for versions of the Lenovo Legion 5 15ARH05 that come factory-equipped with a 144 Hz panel. These versions use a 40-pin eDP connector. It is not compatible with 60 Hz variants, which generally use a 30-pin connector. It is crucial to verify the specifications of your original screen before purchasing.
How can I be sure it's the correct screen before buying it?
The most reliable way is to remove the plastic bezel from your laptop screen to access the LCD panel. On the back, you will find a label with the panel model number (e.g., NV156FHM-NY4) or the Lenovo FRU number (e.g., 5D10W86612). If it matches any of the ones listed in our product sheet, compatibility is guaranteed.
Is this screen difficult to install? Do I need special tools?
Installation requires some delicacy. You will need plastic opening tools (spudgers) to remove the bezel without damaging it and a precision screwdriver. The process involves disconnecting the battery, removing the bezel, unscrewing the old panel, carefully disconnecting the video cable, and performing the process in reverse. The video on this product sheet shows the procedure.
What is the product warranty and how do returns work?
The screen has a 3-year warranty for private customers and 1 year for professionals. If you need to return it, you have 14 days from receipt. Return shipping is at your expense, or you can request home pickup for €8.90 in Spain and Portugal, which will be deducted from the refund.
How long will it take for my order to arrive?
All orders are shipped from our warehouse in Spain. For Spain and Portugal, the delivery time is 24-48 business hours. For France, 48-72 hours, and for Germany, 48-96 hours. For the rest of the European Union, the delivery time is 2 to 5 business days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
PANT-120
Data sheet
- Numéros de pièce
- NV156FHM-NY4 V8.0, B156HAN09.2, LP156WFG(SP)(P1), B156HAN13.1, NV156FHM-NX1 V8.0
- Compatible Model
- Lenovo Legion 5 15ARH05
- CP. Resolution
- 1920x1080
- CP. Finish
- Mate
- CP. Connector
- 40 pins eDP
- CP. Position of the connector
- Right inferior
- CP. Connector size
- 2.5 cm
- CP. Refresco
- 144Hz
- CP. Supports
- No supports
- CP. Touchscreen?
- No
- CG. Reference
- B156HAN13.1
- CG. Type of piece
- Laptop screen
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- SI
