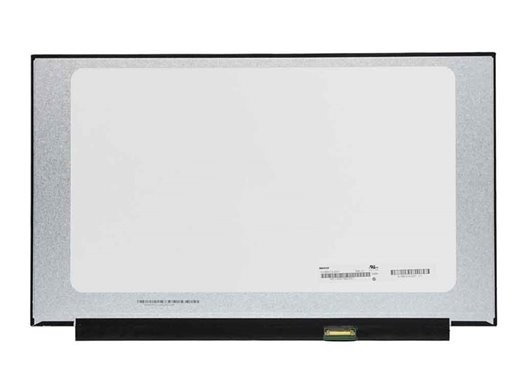

Screen for Lenovo IdeaPad 3 15IML05 / 15IIL05 / 15ADA05 15.6" HD 1366x768 Matte 30-pin
€45.99
Tax included
This 15.6" HD (1366x768) screen is a replacement for Lenovo IdeaPad 3 15IML05, 15IIL05, and 15ADA05 laptops. It is only compatible with non-touch versions with HD resolution. It is not valid for Full HD or touch models. New product, with 3 years warranty and 24-48h shipping from Spain.
B156XTN08.1
Screen for Lenovo IdeaPad 3 15IML05 / 15IIL05 / 15ADA05 15.6" HD 1366x768 Matte 30-pin
New replacement panel for non-touch HD (1366x768) versions. Without brackets.
- 15.6 inches
- 1366x768 HD
- 30-pin eDP connector
- Matte Finish
- New
Key features
-
Size and Resolution
15.6-inch panel with HD resolution of 1366x768 pixels, the standard for these versions of the IdeaPad 3.
-
Connector
Uses a 30-pin eDP video connector, located at the bottom.
-
Finish and Brackets
Matte (anti-glare) surface finish for better viewing. This model does not include mounting brackets.
-
Specific Compatibility
Verified for Lenovo IdeaPad 3 15IML05, 15IIL05, and 15ADA05 in their non-touch HD versions.
Product description
This screen is a new replacement for 15.6-inch Lenovo IdeaPad 3 laptops, specifically models 15IML05, 15IIL05, and 15ADA05. It offers an HD resolution of 1366x768 pixels, a matte finish to prevent reflections, and uses a 30-pin eDP connector. It is the correct part to replace a damaged, broken, or dead pixel panel in versions of this equipment that originally came with a non-touch HD screen.
Important: This panel is not compatible with IdeaPad 3 versions that come with a touch screen or Full HD (1920x1080) resolution, as they use different components.
How to know if it's the screen you need?
To ensure 100% compatibility before purchasing, it is essential to verify your laptop's original screen. Follow these steps:
- Remove the bezel from your laptop screen to access the LCD panel.
- Check the back label of your original screen. Look for the panel model code or the Lenovo FRU number.
- Confirm that your screen is HD (1366x768), has a 30-pin connector, and is not touch-enabled.
This screen replaces the following original panels and Lenovo FRUs:
- Panel models: B156XTN08.1, NT156WHM-N44, N156BGA-EA3 Rev.C3
- Lenovo FRU: 5D10S74987, 5D10W69514, 5D10W73196, 5D11A58634
Below, you can watch a generic video about the disassembly process of a Lenovo IdeaPad 3, which will serve as a guide to access the screen and verify its characteristics.
Who is this product for?
For technical services and individual users who need to replace the damaged screen of a Lenovo IdeaPad 3 (non-touch HD version).
Ideal for
- Replacement of a broken or cracked screen on an IdeaPad 3 15IML05.
- Repair of a panel with dead pixels or stains on an IdeaPad 3 15IIL05.
- Replacement of a screen with vertical lines or flickering on an IdeaPad 3 15ADA05.
Technical specifications
| Size | 15.6" |
|---|---|
| Resolution | 1366x768 pixels (HD) |
| Finish | Matte |
| Touchscreen | No |
| Brackets | No |
| Type | eDP |
|---|---|
| Pins | 30 pins |
| Position | Bottom |
| Brand | Lenovo |
|---|---|
| Models | IdeaPad 3 15IML05 (81WB), 15IIL05 (81WE), 15ADA05 (81W1) |
Compatibility
Compatible part numbers
- B156XTN08.1
- NT156WHM-N44
- N156BGA-EA3 Rev.C3
- 5D10S74987
- 5D10W69514
- 5D10W73196
- 5D11A58634
Compatible laptop models
- Lenovo IdeaPad 3 15IML05 (Tipo 81WB)
- Lenovo IdeaPad 3 15IIL05 (Tipo 81WE)
- Lenovo IdeaPad 3 15ADA05 (Tipo 81W1)
Always check the part number printed on your original part before ordering; if in doubt, contact us with the exact model of your device.
Frequently asked questions
Is this screen compatible with any Lenovo IdeaPad 3?
No, it is only compatible with IdeaPad 3 15IML05, 15IIL05, and 15ADA05 models, and only for versions that originally come with a non-touch HD (1366x768) screen. It will not work on models with Full HD (1920x1080) or touch screens, as the wiring and configuration are different.
How can I be sure it's the correct screen for my laptop?
The only way to guarantee it is by removing the plastic bezel from your current screen and looking at the label on the back of the panel. It should match one of the part numbers indicated in the description (such as B156XTN08.1 or NT156WHM-N44) or have a compatible Lenovo FRU (such as 5D10S74987). Also, check that the resolution and the 30-pin connector match.
Is this screen difficult to install?
Installation requires some delicacy. You will need plastic opening tools (spudgers) to avoid damaging the bezel and a small screwdriver. The most delicate step is disconnecting and connecting the 30-pin eDP connector without damaging the cable or pins. If you don't have experience, we recommend going to a technical service.
What is the warranty and how do returns work?
The product is new and has a 3-year warranty for private customers (1 year for professionals). You have 14 days to return it if you are not satisfied. Return shipping is at your expense, or you can request a home collection for €8.90 in Spain and Portugal, which will be deducted from the refund.
How long will my order take to arrive?
Orders are prepared and shipped from our warehouse in Spain. For Spain and Portugal, the delivery time is 24-48 working hours. For France, 48-72 hours, and for Germany, 48-96 hours. For the rest of the European Union, the delivery time is 2 to 5 working days.
Warranty, returns and shipping
- Warranty: 3-year warranty (1 year for business customers)
- Returns: 14-day returns (ship it yourself or €8.90 home pickup in Spain and Portugal)
- Shipping: EU delivery 48-120 h
- Condition: New
PANT-086
Data sheet
- Numéros de pièce
- B156XTN08.1, NT156WHM-N44, N156BGA-EA3 Rev.C3
- Compatible Model
- Lenovo IdeaPad 3 15IML05 / 15IIL05 / 15ADA05
- CP. Resolution
- 1366x768
- CP. Finish
- Mate
- CP. Connector
- EDP 30 pins
- CP. Position of the connector
- Right inferior
- CP. Connector size
- 2 cm
- CP. Supports
- No supports
- CP. Touchscreen?
- No
- CG. Reference
- B156XTN08.1
- CG. Type of piece
- Laptop screen
- CG. State
- New
- CG. Warranty
- 3 years
- CP. IPS
- No
New
☆☆☆☆☆
